Front Side Door Window Module Replacement

Front Side Door Window Module Replacement

Removal Procedure

1. Remove the trim panel.
2. Remove the water deflector.
3. Position the window in a position that allows access to the window clamp bolts.




4. Loosen the fasteners on the window clamps.
5. Position the window in the full up position and tape in place.
6. Disconnect the window motor electrical connector.

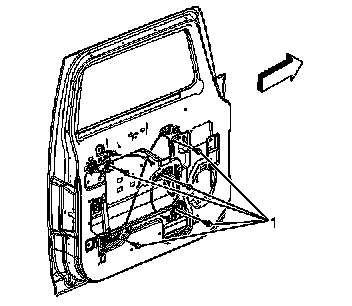

7. Remove the 5 fasteners (1) retaining the window module to the door.
8. Remove the window module from the door.

Installation Procedure




1. Place the window module in position in the door.

Notice: Refer to Fastener Notice.

2. Install the 5 fasteners (1) to the window regulator.

Tighten the fasteners to 9 N.m (7 lb ft).

3. Connect the window motor electrical connector.
4. Place the window in the window clamps, and tighten the clamps.

Tighten the clamps to 9 N.m (7 lb ft).

5. Operate the window module to inspect for proper operation.
6. Install the water deflector.
7. Install the trim panel.
