Transfer Case Shield Replacement

Transfer Case Shield Replacement

Removal Procedure




1. Raise the vehicle. Refer to Vehicle Lifting.

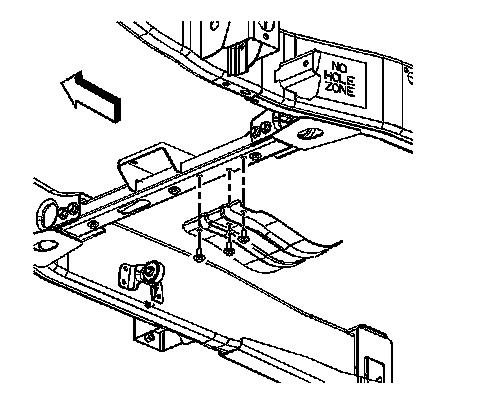

2. Remove the transfer case shield mounting bolts from the cross member.
3. Remove the transfer case shield from cross member.

Installation Procedure




1. Install the transfer case shield to the cross member.

Notice: Refer to Fastener Notice.

2. Install the transfer case shield mounting bolts the cross member.

Tighten the mounting bolts to 30 N.m (23 lb ft).

3. Lower the vehicle. Refer to Vehicle Lifting.
