Vent Hose Connector Replacement - Front Drive Axle

Vent Hose Connector Replacement - Front Drive Axle

Removal Procedure

1. Raise the vehicle. Refer Lifting and Jacking the Vehicle.
2. Remove the engine protection shield.

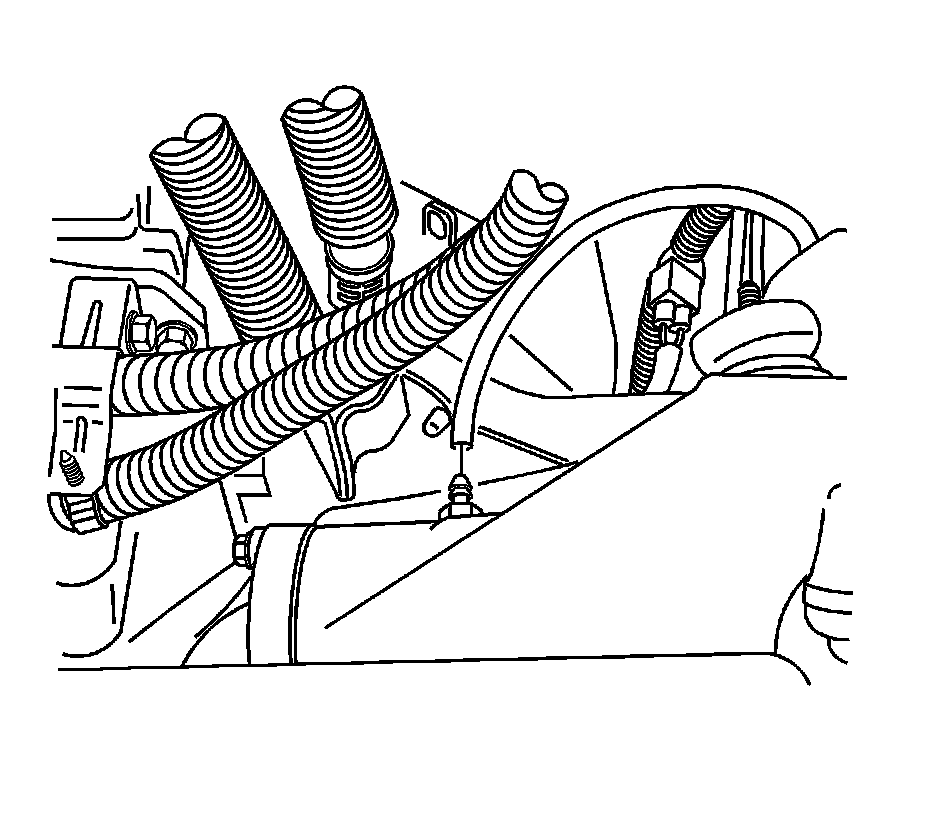

3. Disconnect the vent hose from the vent hose connector.




4. Remove the vent hose connector.

Installation Procedure





Notice: Refer to Fastener Notice.

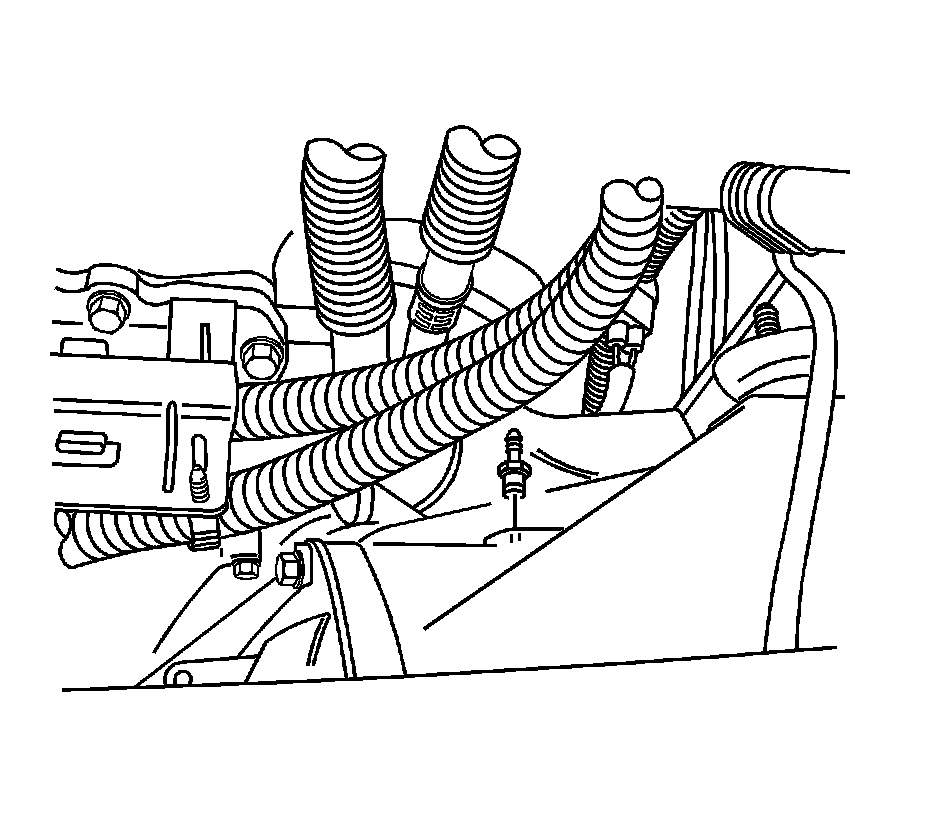

1. Install the vent hose connector.

Tighten the vent hose connector to 20 N.m (15 lb ft).




2. Connect the vent hose to the vent hose connector.
3. Install the engine protection shield.
4. Lower the vehicle.
