Floor Shift Control Knob Replacement

Floor Shift Control Knob Replacement

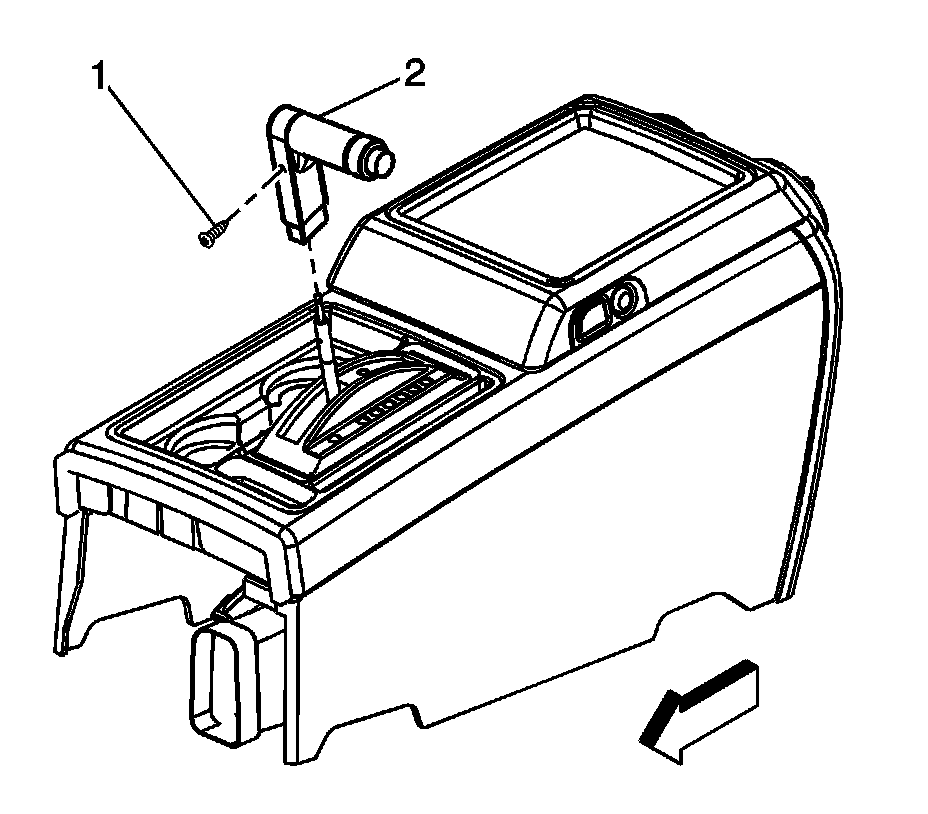

Removal Procedure




1. Loosen the set screw (1).
2. Pull up to remove the shift control knob (2) from the transmission control assembly.

Installation Procedure




1. Install the shift control knob (2) to the transmission shift control assembly.

Notice: Refer to Fastener Notice.

2. Apply threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the threads of the shift knob set screw.

Tighten the shift control knob set screw (1) to 2 N.m (18 lb in).
