Shock Absorber Replacement

Shock Absorber Replacement

Removal Procedure

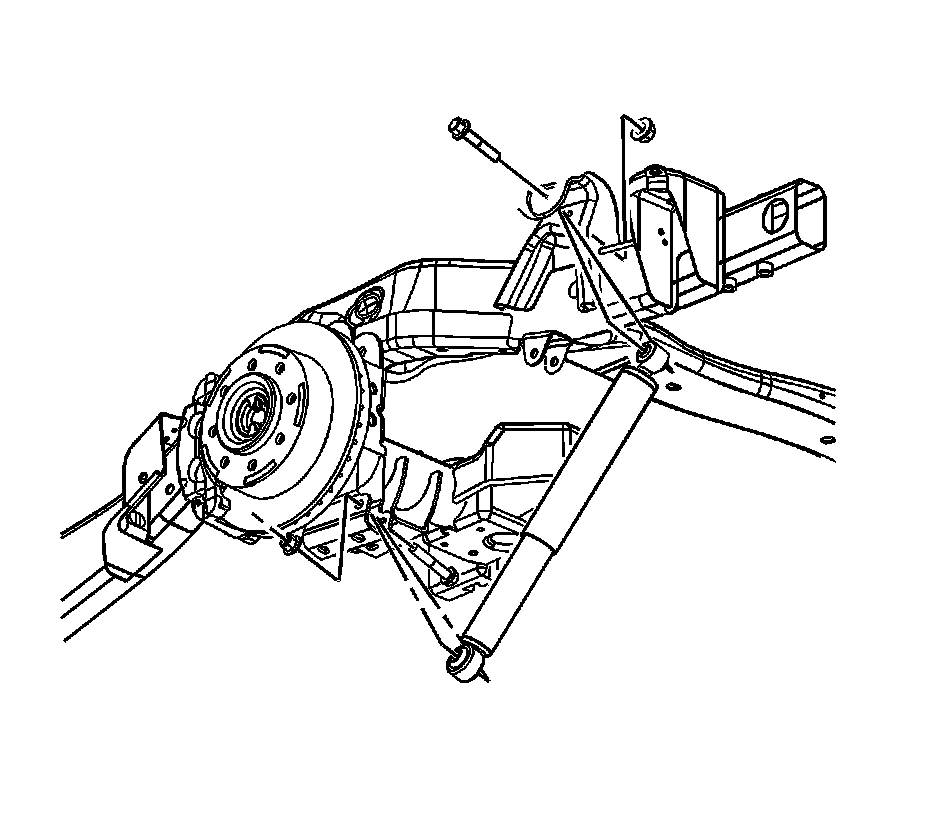

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Support the rear axle.
3. Disconnect the air suspension level sensor (if equipped).




4. Remove the upper shock absorber nut and the bolt.
5. Remove the lower shock absorber nut and the bolt.
6. Remove the shock absorber.

Installation Procedure




1. Install the shock absorber.

Notice: Refer to Fastener Notice.

2. Install the upper shock absorber nut and bolt.
3. Install the lower shock absorber nut and bolt.

Tighten the bolts to 115 N.m (85 lb ft).

4. Connect the air suspension level sensor (if equipped).
5. Remove the rear axle support.
6. Lower the vehicle.
