Shock Absorber Replacement

Shock Absorber Replacement

Removal Procedure

Notice: The front shock absorbers of the vehicle are multifunctional. In addition to contributing to a smooth ride they also provide the only stop to the front suspension when fully extended. Therefore, when servicing the shock absorber, service replacement shock absorbers must be equivalent to original shock absorbers in both extended length and strength. Use of shocks not complying to original equipment or strength could result in suspension over-travel or shock breakage. Suspension over-travel may result in suspension component breakage.

1. Raise and support the vehicle. Refer to Vehicle Lifting.




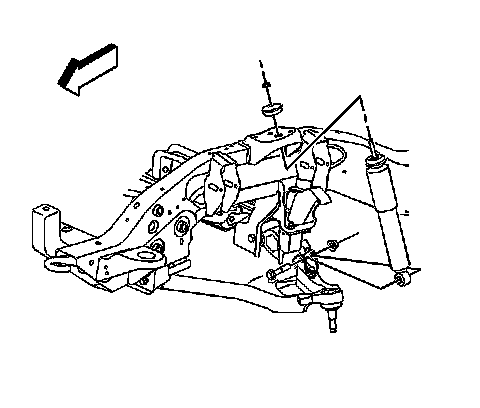

2. Hold the tennon end with a wrench while removing the nut.
3. Remove the nut.




4. Remove the upper insulator (1). Do not discard the plastic pilot ring (2).

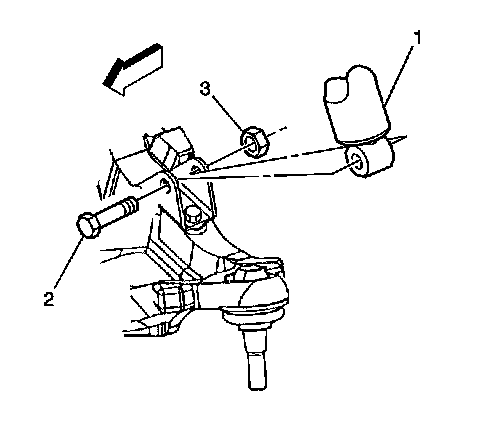

5. Remove the shock absorber mounting bolt (2) and nut (3).
6. Remove the shock absorber.

Installation Procedure




1. Install the shock absorber. Insert the tennon through the hole in the shock bracket on the frame.




2. Align the shock absorber with the mounting holes in the lower control arm.

Notice: Refer to Fastener Notice.

3. Install the shock absorber bolt (2) and nut (3).

Tighten the nut to 80 N.m (59 lb ft).





Important: The upper insulators are substantially larger that the lower insulators. The upper insulator (1) must be installed above the shock mounting bracket on the frame. The plastic pilot ring (2) will assist the alignment of the insulator.

4. Install the upper insulator to the shock absorber.
5. Install the nut to the tennon end. Do not tighten the nut.
6. Support the lower control arm at curb height.
7. Hold the tennon end with a wrench while torquing the nut.

Tighten the nut to 20 N.m (15 lb ft).

8. Lower the vehicle.
