Isolator Compressor Automatic Level Control Air Replacement (Dual Compressors)

Isolator Compressor Automatic Level Control Air Replacement (Dual Compressors)

Removal Procedure

Caution: Do NOT remove an air supply pipe in an attempt to depressurize the air suspension. Always follow the Air Suspension Depressurization Procedure in Air Suspension. Failure to follow this procedure may cause personal injury or damage to the vehicle.




1. Remove the compressor assembly from the vehicle and place on a bench.

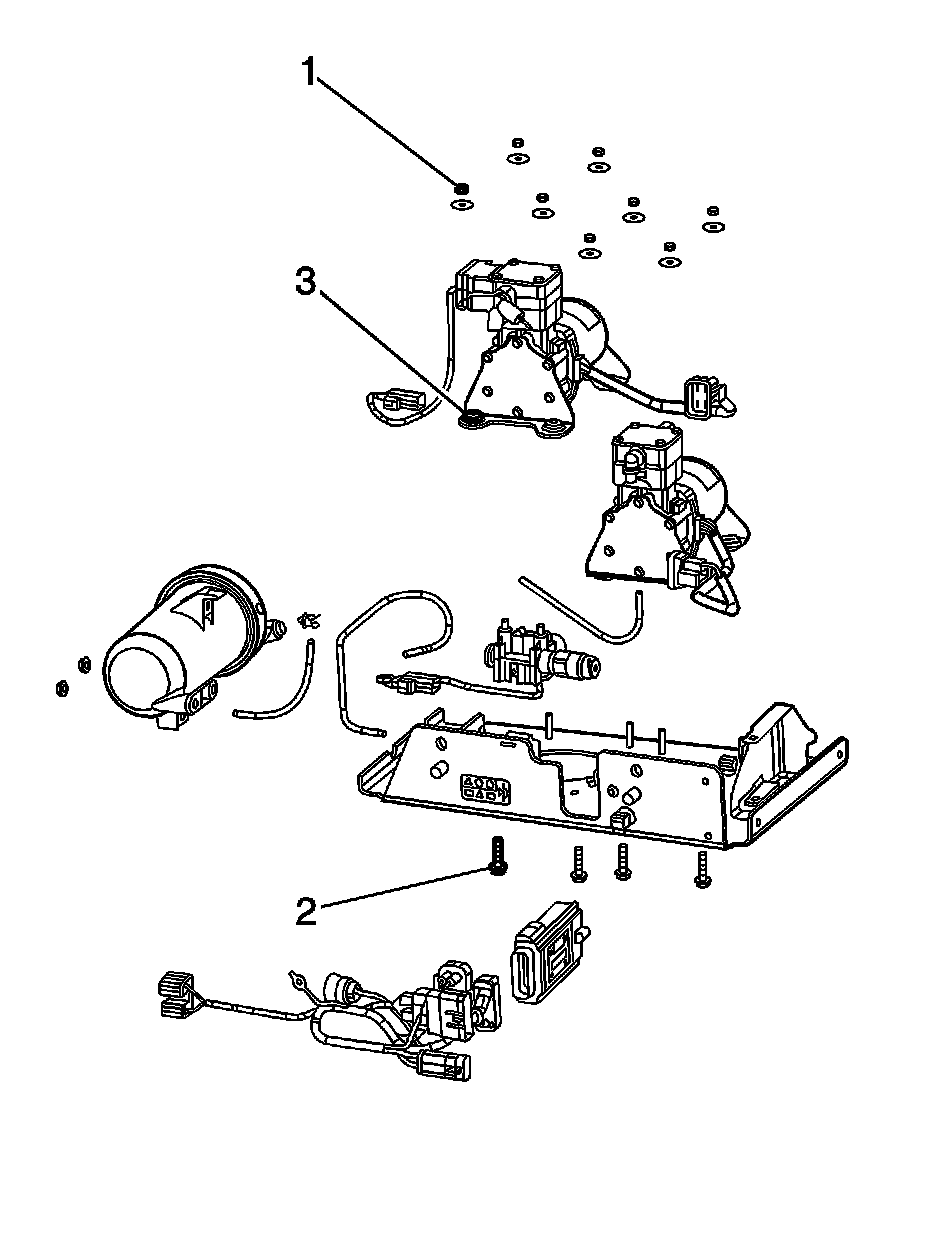

2. Remove the mounting nuts (1).
3. Remove the mounting bolts (2).
4. Remove the isolators (3).

Installation Procedure




1. Install the isolators (3).
2. Install the mounting bolts (2).

Notice: Refer to Fastener Notice.

3. Install the mounting nuts (1).

Tighten the nuts to 25 N.m (18 lb ft).

4. Install the compressor assembly to the vehicle.
