Compressor/Pump: Locations

Air Suspension Component Views

Rear Underbody

Rear Underbody:

1 - C451
2 - Air Suspension Compressor 1 Connector
3 - Air Suspension Compressor 2 Connector
4 - Air Suspension Pressure Sensor
5 - Air Suspension Inlet Valve-LR
6 - Air Suspension Inlet Valve-RR
7 - Air Suspension Exhaust Valve Connector
8 - Air Suspension Air Dryer
9 - Air Suspension Compressor 1
10 - Air Suspension Compressor 2
11 - Air Suspension Module
12 - C450

Chassis and Body Mounted Components

Chassis and Body Mounted Components:

1 - Electronically Controlled Air Suspension Relay
2 - Chassis Harness
3 - I/P Compartment
4 - Traction Control Switch
5 - Tow/Haul Switch
6 - Ride Height Switch
7 - Air Suspension Sensor - LR
8 - Air Suspension Inflator Switch

Air Suspension Module Connections

Air Suspension Module Connections:

1 - Air Suspension Module
2 - G402
3 - C451
4 - Rear Axle
5 - C450

Right Rear Corner of Cargo Bed (SUT)

Right Rear Corner of Cargo Bed (SUT):

1 - Air Inflator Switch (ZM6)
2 - Auxiliary Power Outlet - Cargo (SUT)

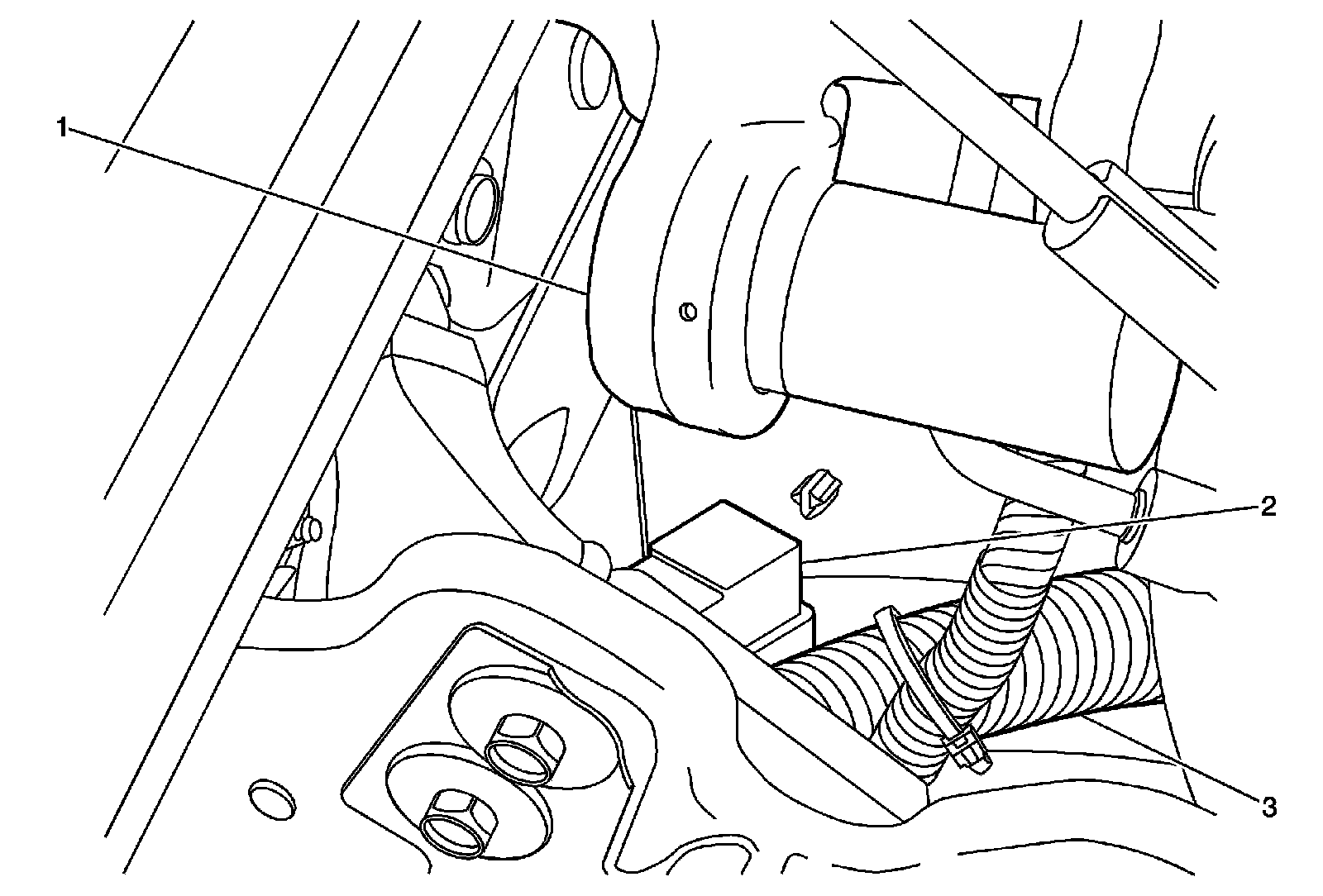

Electronically Controlled Air Suspension Relay

Electronically Controlled Air Suspension Relay:

1 - Master Cylinder
2 - Electronically Controlled Air Suspension Relay
3 - Chassis Harness
