Rear Axle Lower Control Arm Replacement

Rear Axle Lower Control Arm Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Support the rear axle at curb height.




3. Remove the fuel tank shield.

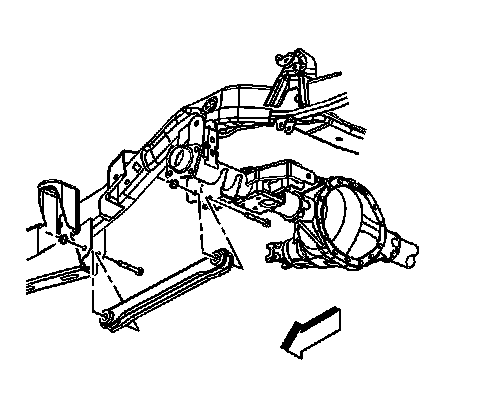

4. Remove the lower control arm retaining nuts.
5. Remove the lower control arm retaining bolt.
6. Remove the lower control arm.

Installation Procedure




1. Install the lower control arm.

Notice: Refer to Fastener Notice.

Important: Do not tighten the bolts unless the suspension is at the curb height position.

2. Install the lower control arm to axle bolt and nut.

Tighten the bolt to 275 N.m (203 lb ft).

Important: Do not tighten the bolts unless the suspension is at the curb height position.

3. Install the lower control arm to frame bolt and nut.

Tighten the bolt to 175 N.m (129 lb ft).

4. Install the fuel tank shield.
5. Remove the rear axle support.
6. Lower the vehicle.
