Steering Column Shaft Replacement

Steering Column Shaft Replacement

Removal Procedure




Caution: Refer to Restraint System Service Precautions.

1. Disable the SIR system. Refer to SIR Disabling and Enabling.
2. Remove the steering column tilt head.

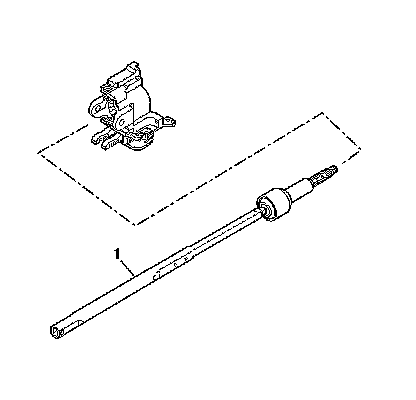

3. Remove the steering shaft (1) from the steering column tilt head assembly.
4. Inspect the steering column for accident damage.

Installation Procedure




1. Install the steering shaft (1) into the steering column tilt head assembly.
2. Install the steering column tilt head.
3. Enable the SIR system. Refer to SIR Disabling and Enabling.
