Starter Solenoid Does Not Click



Starter Solenoid Does Not Click

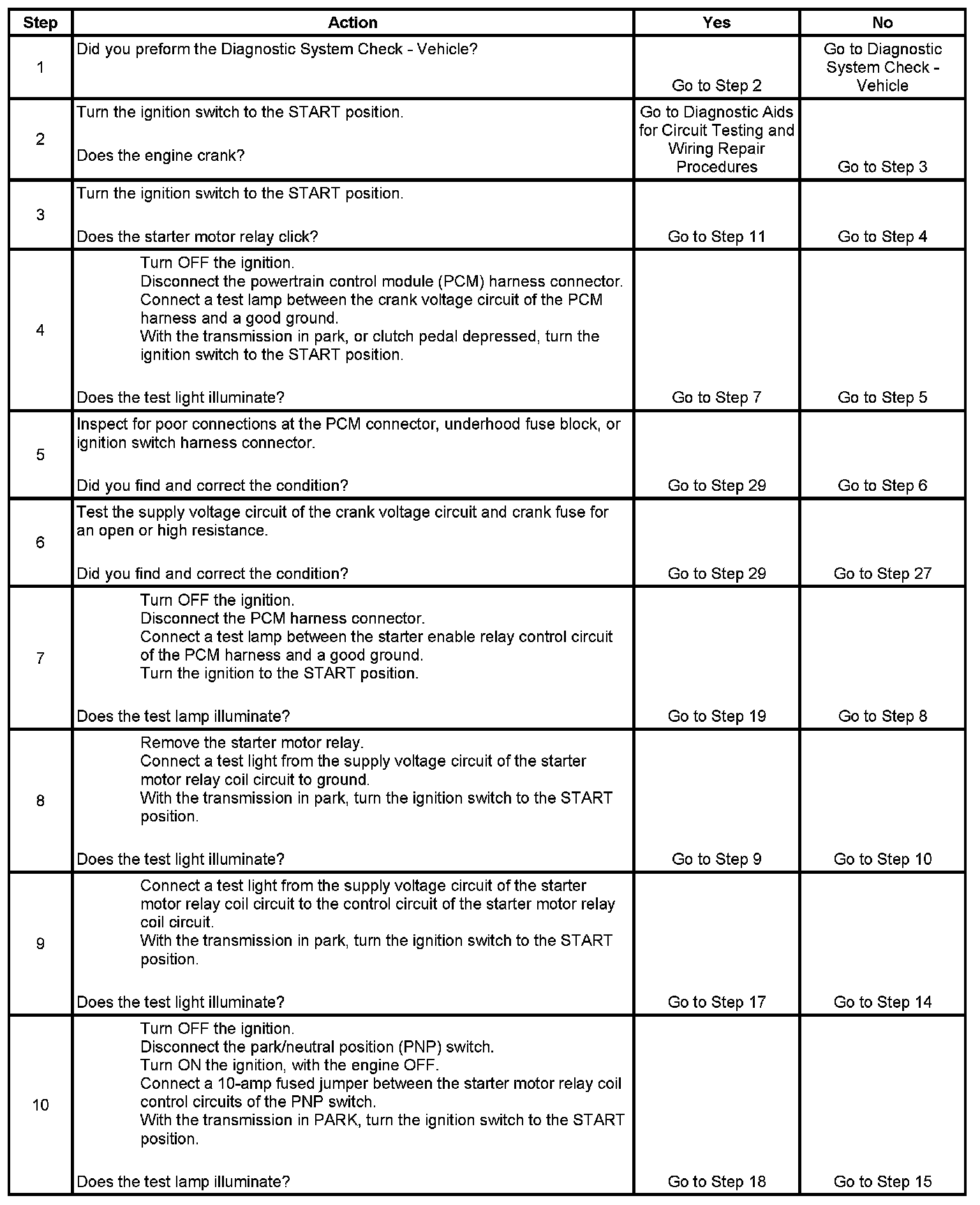

Step 1 - Step 10:

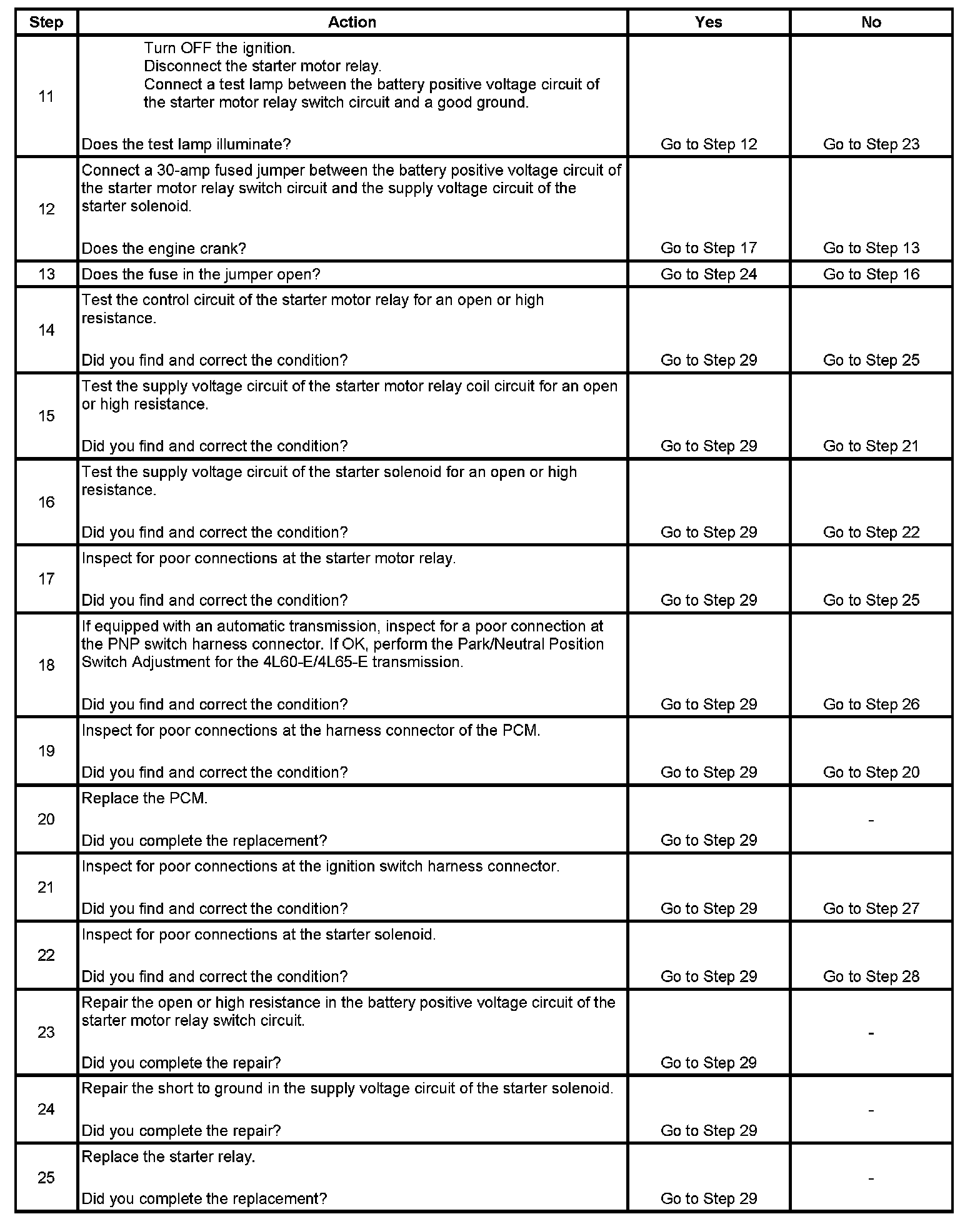

Step 11 - Step 25:

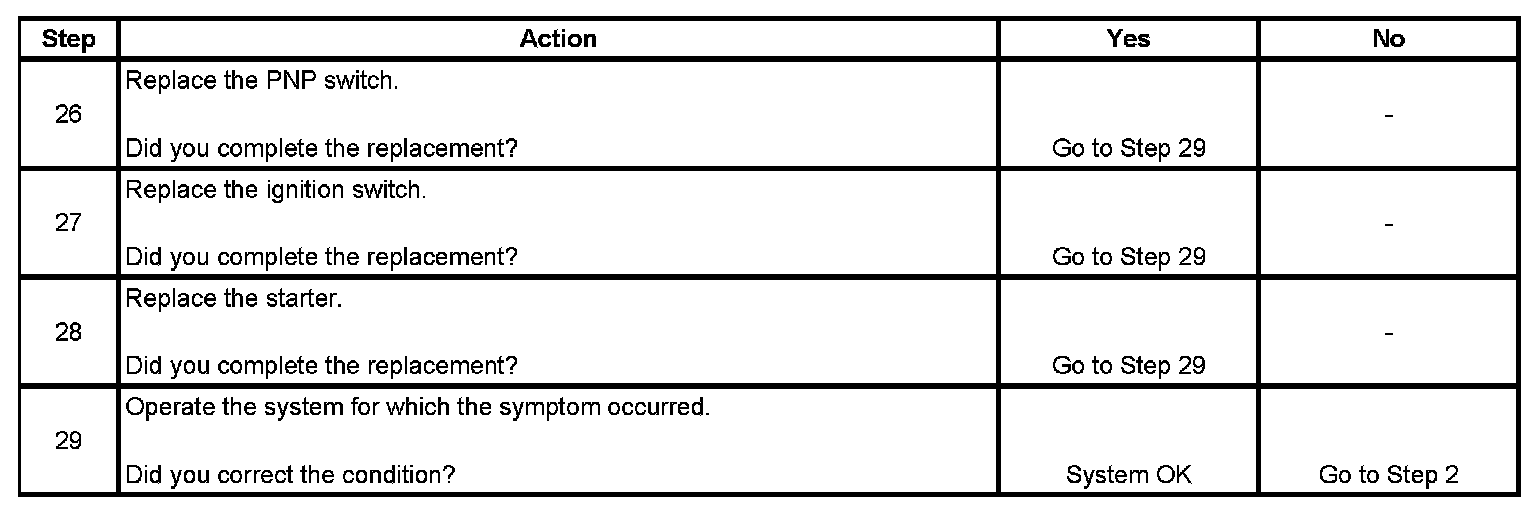

Step 26 - Step 29:
