Retained Accessory Power (RAP) Inoperative
Retained Accessory Power (RAP) Inoperative
Retained Accessory Power (RAP) Inoperative
Test

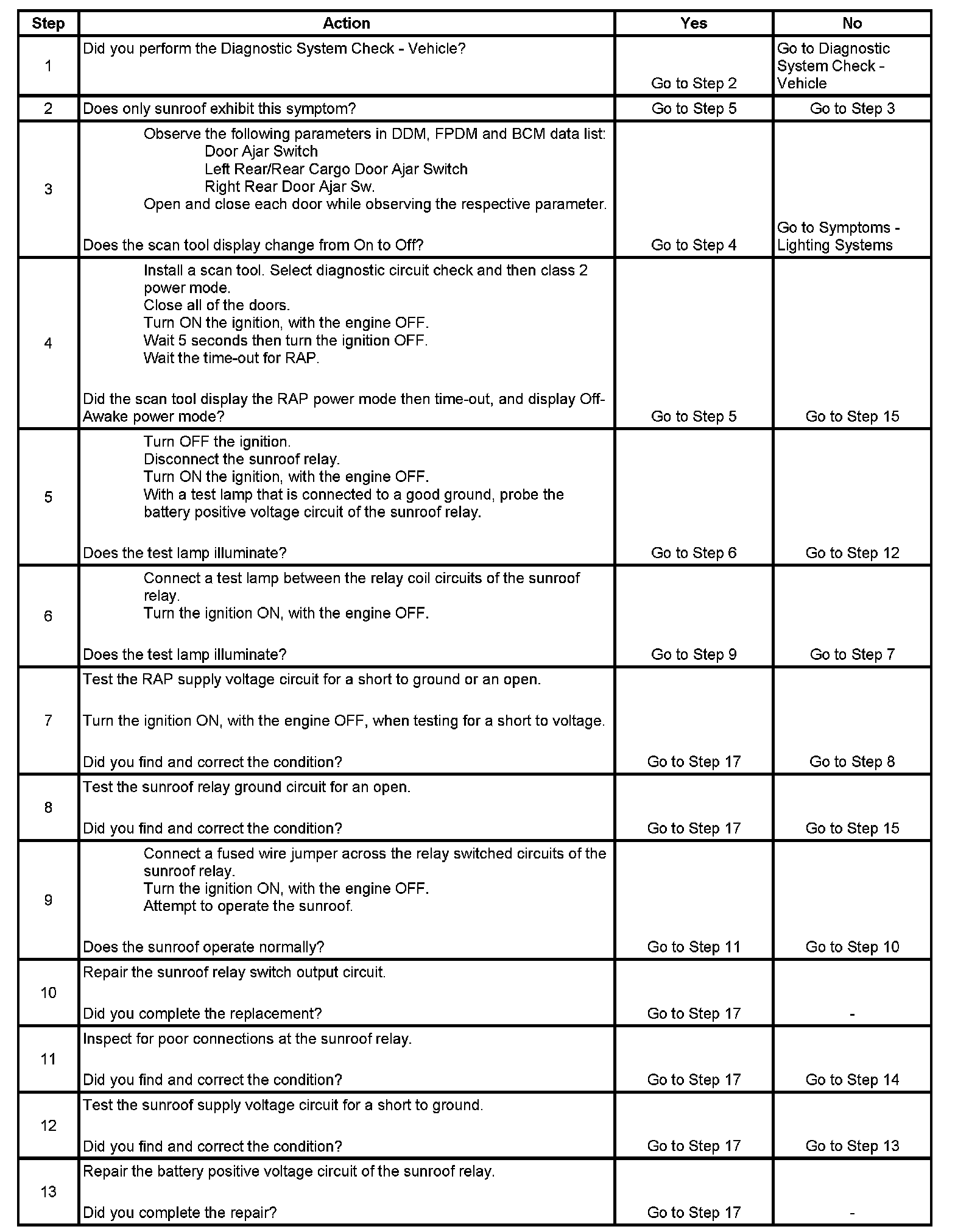

Step 1 - Step 13:

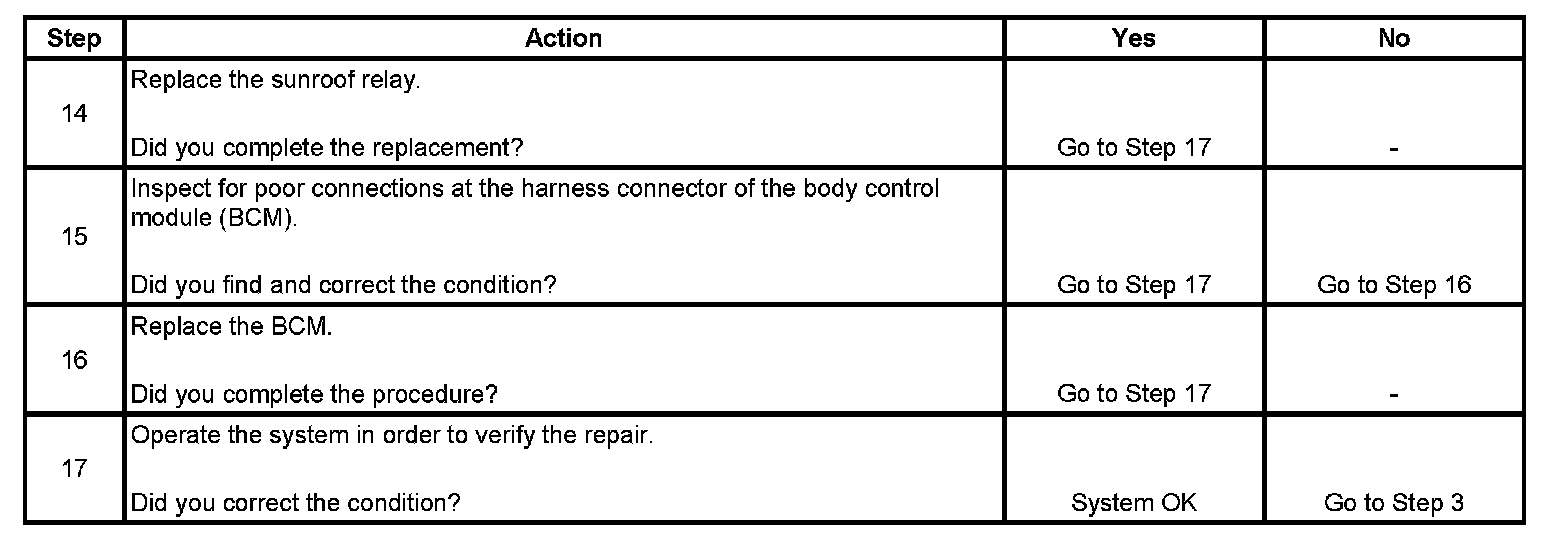

Step 14 - Step 17:
