C420
C420

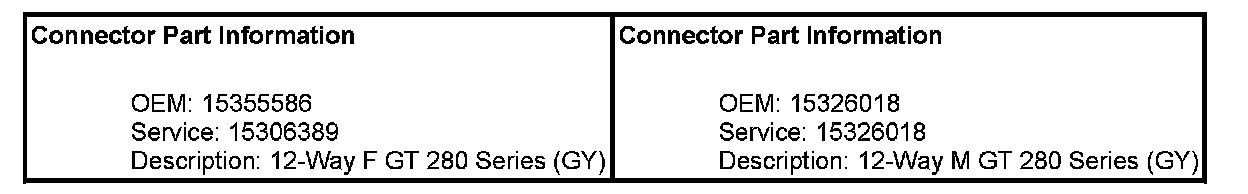

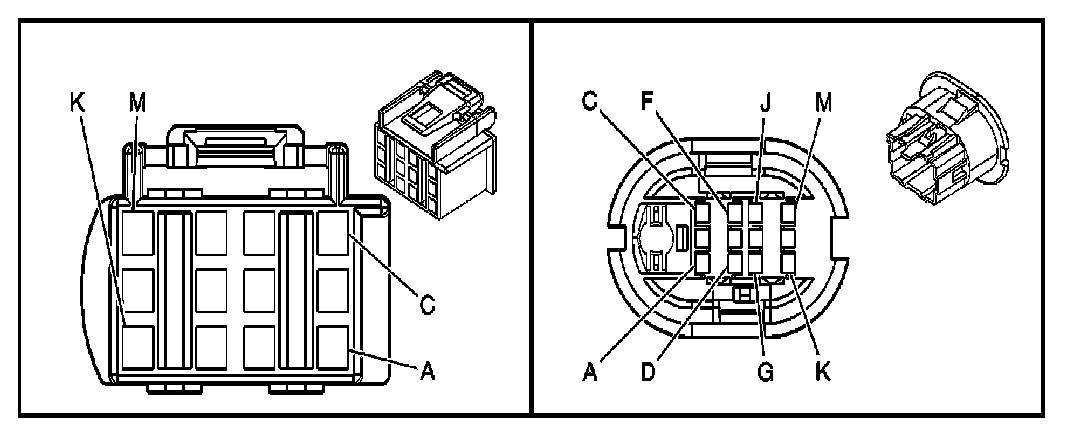

Inline Harness Connector End Views

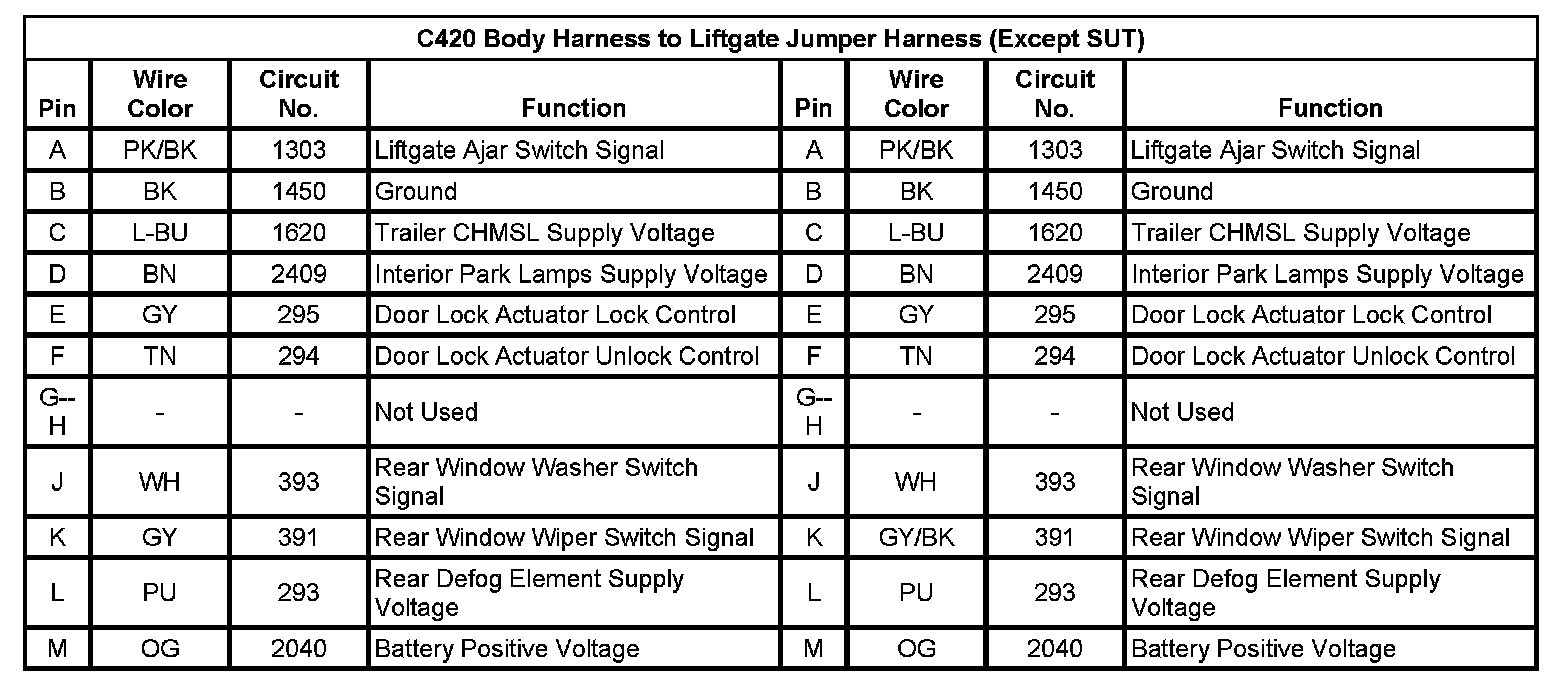

C420 Body Harness to Liftgate Jumper Harness (Except SUT)
