C377
C377

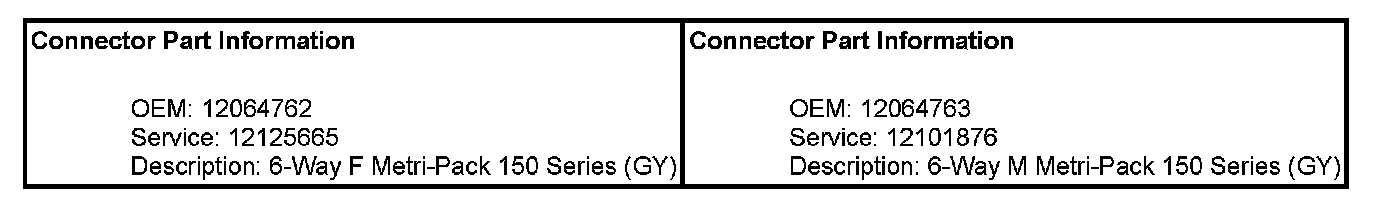

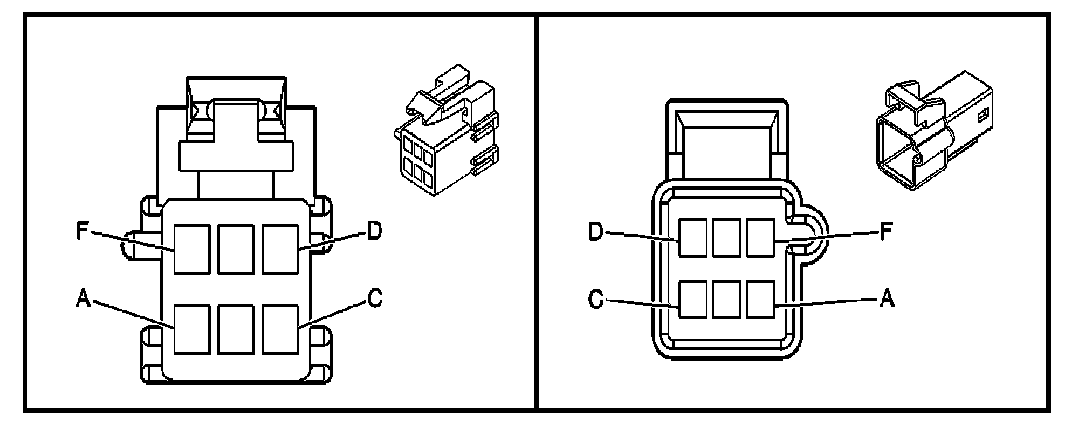

Inline Harness Connector End Views

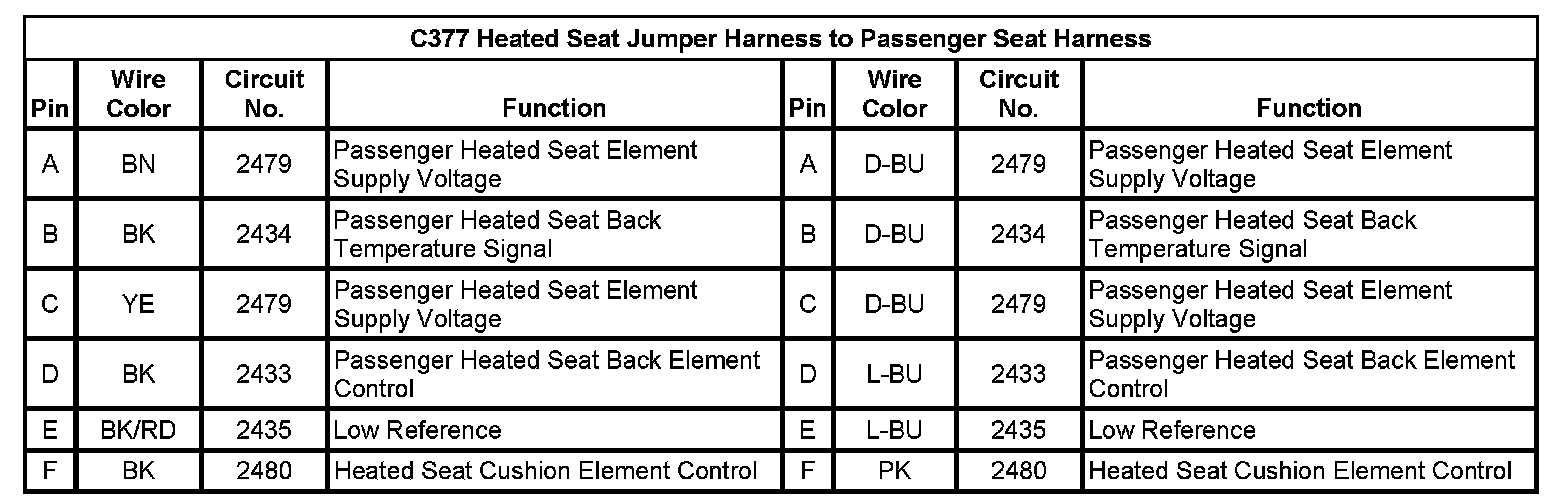

C377 Heated Seat Jumper Harness to Passenger Seat Harness
