C376
C376

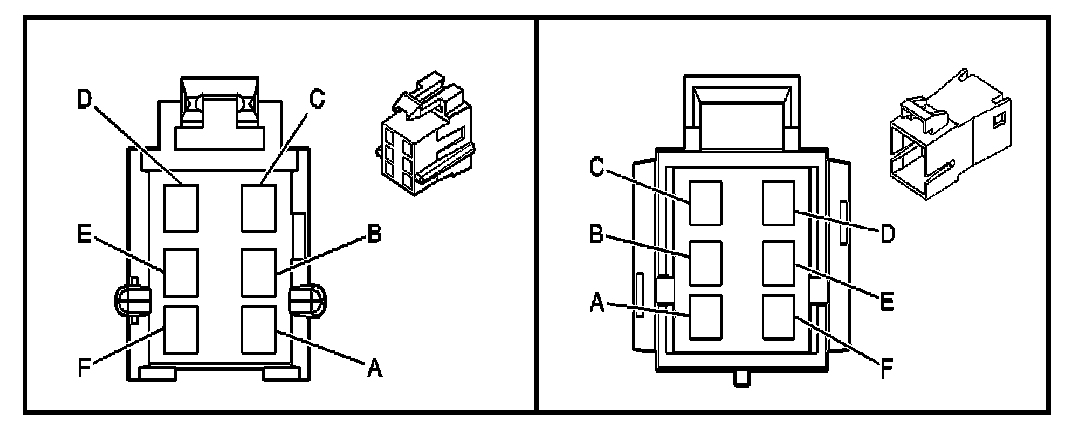

Inline Harness Connector End Views

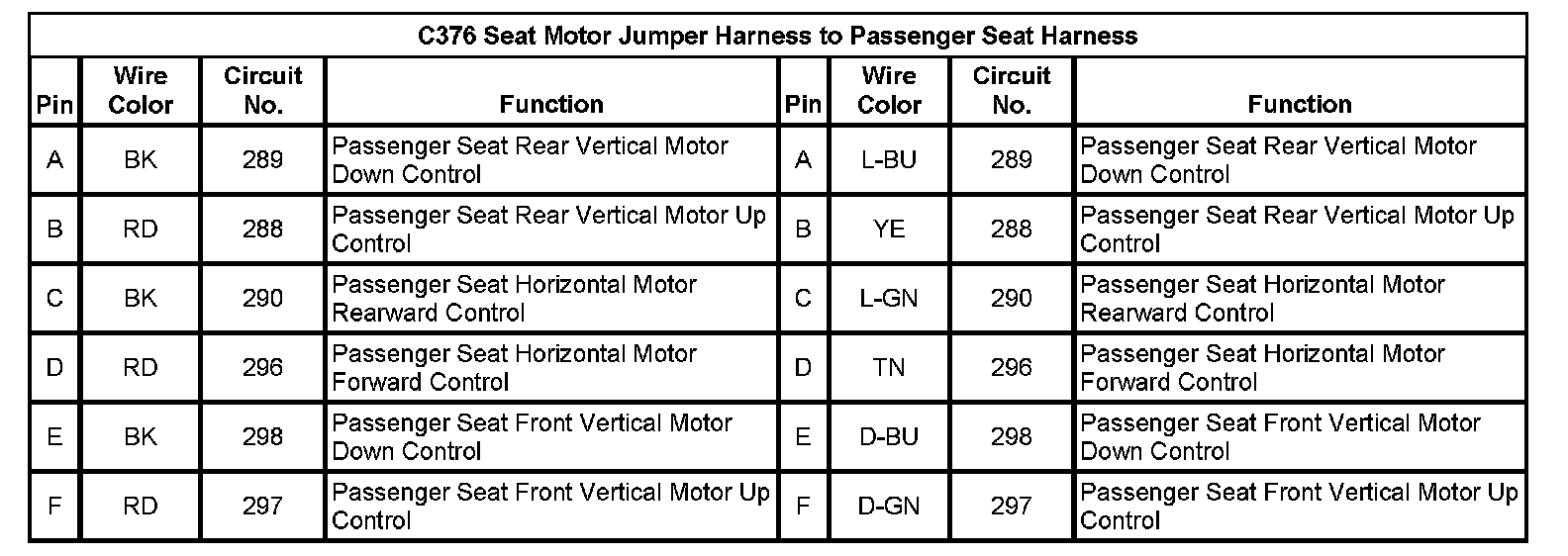

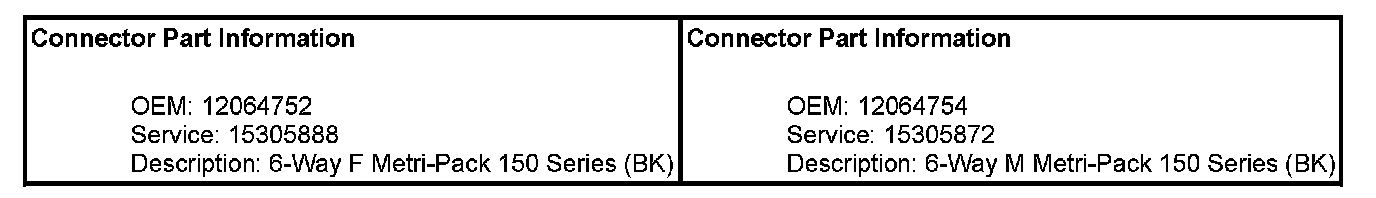

C376 Seat Motor Jumper Harness to Passenger Seat Harness
