Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C300 - C399 >> C355

C355

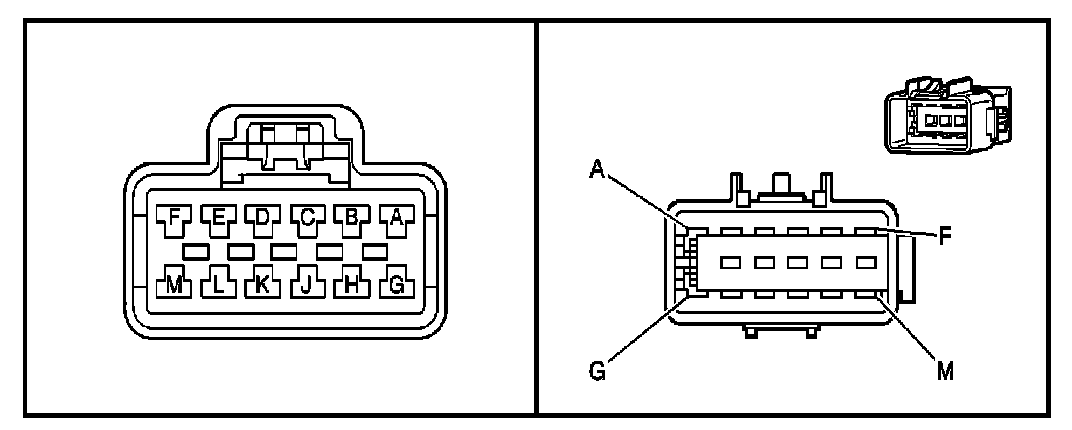

Inline Harness Connector End Views

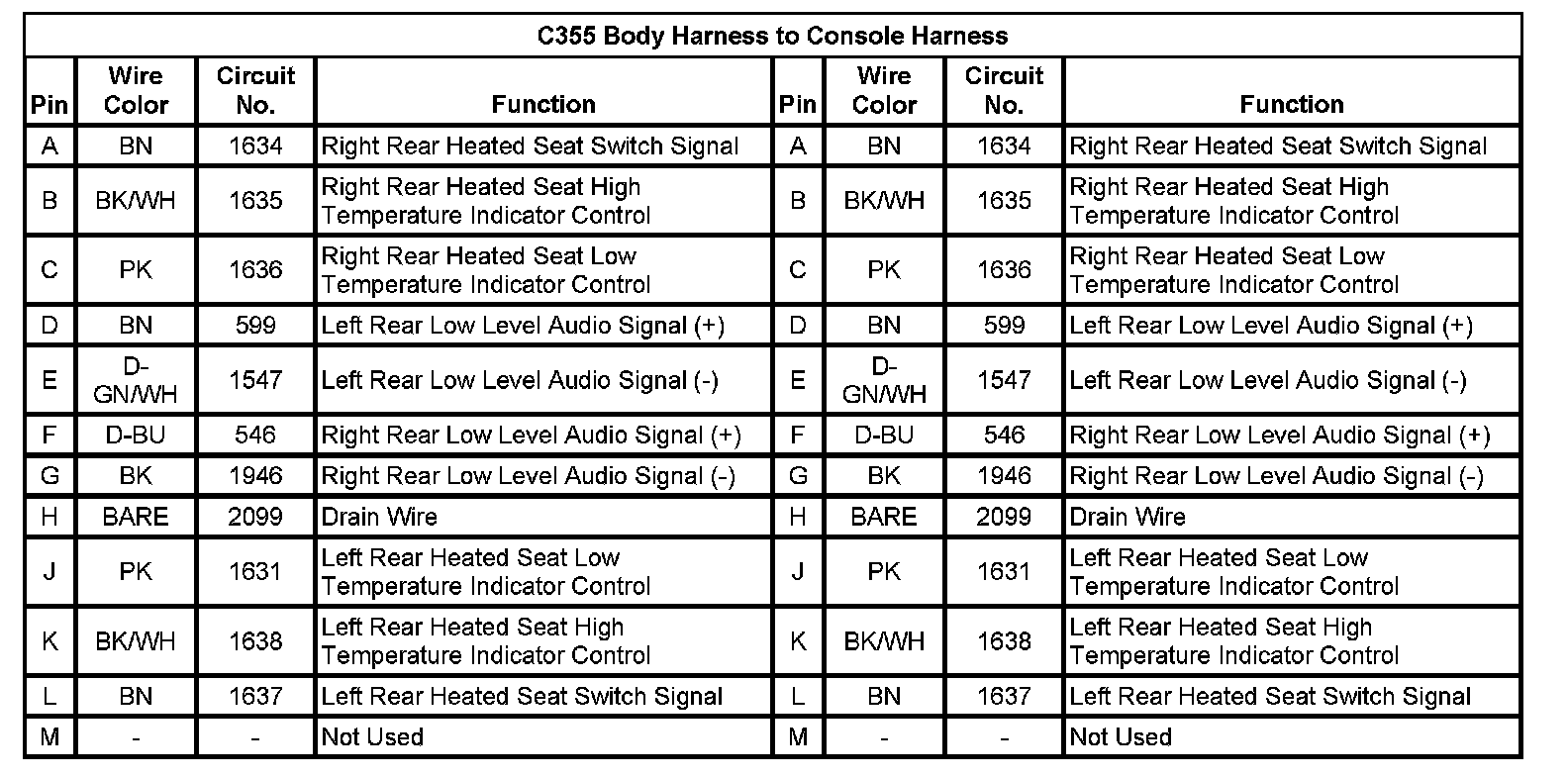

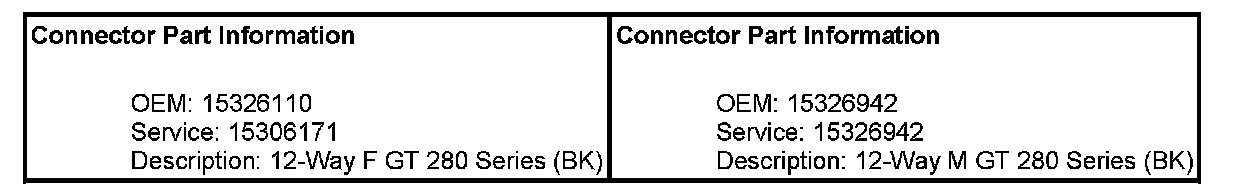

C355 Body Harness to Console Harness
