C311

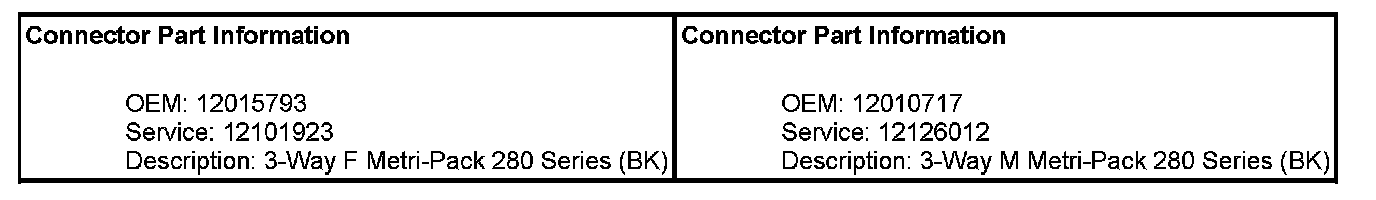

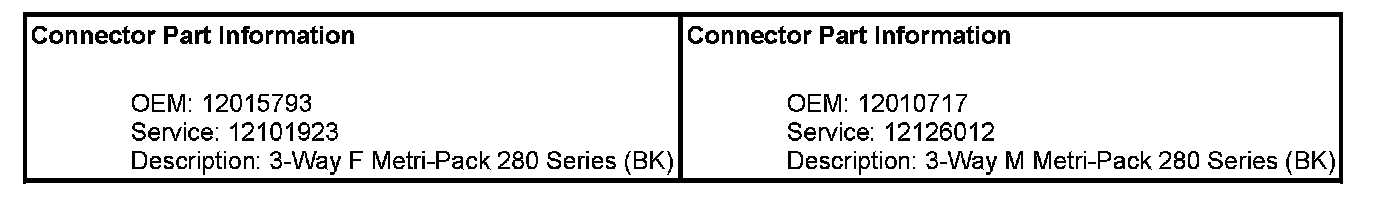

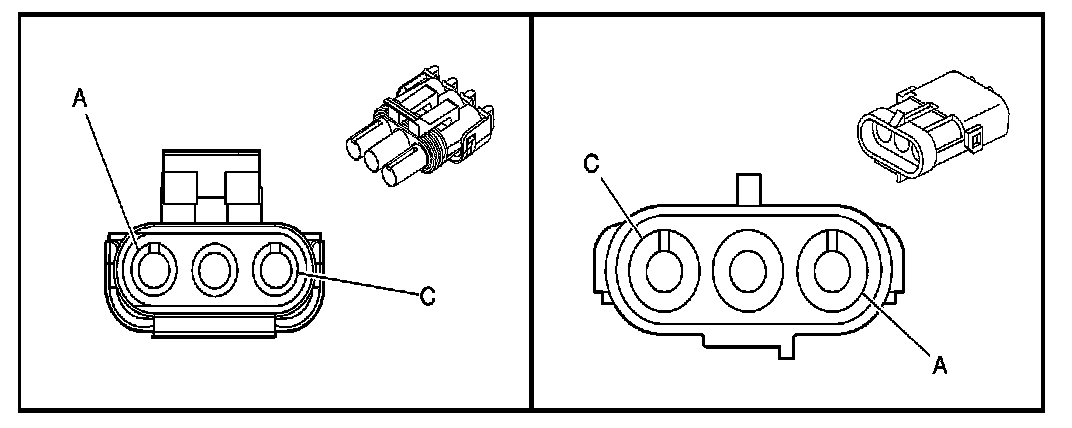

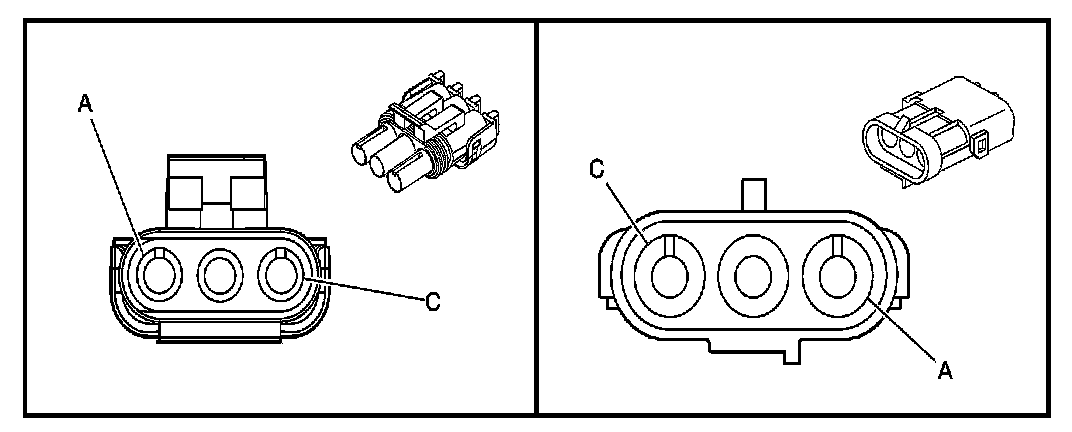

Inline Harness Connector End Views

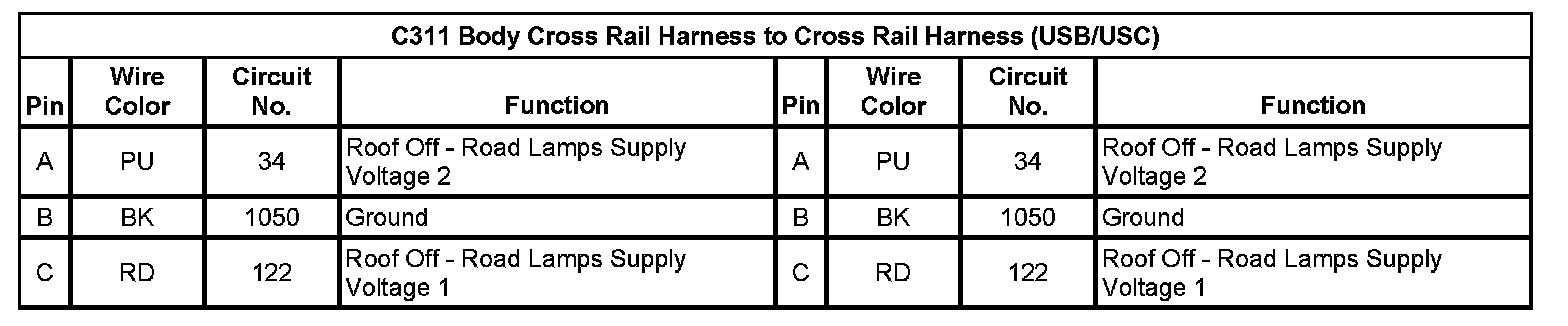

C311 Body Cross Rail Harness to Cross Rail Harness (USB/USC)

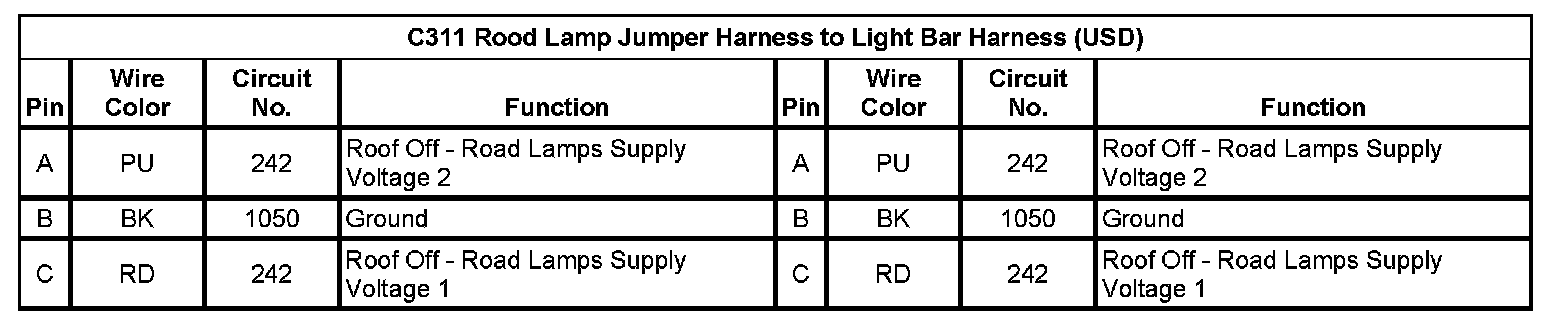

C311 Roof Lamp Jumper Harness to Light Bar Harness (USD)
