C212

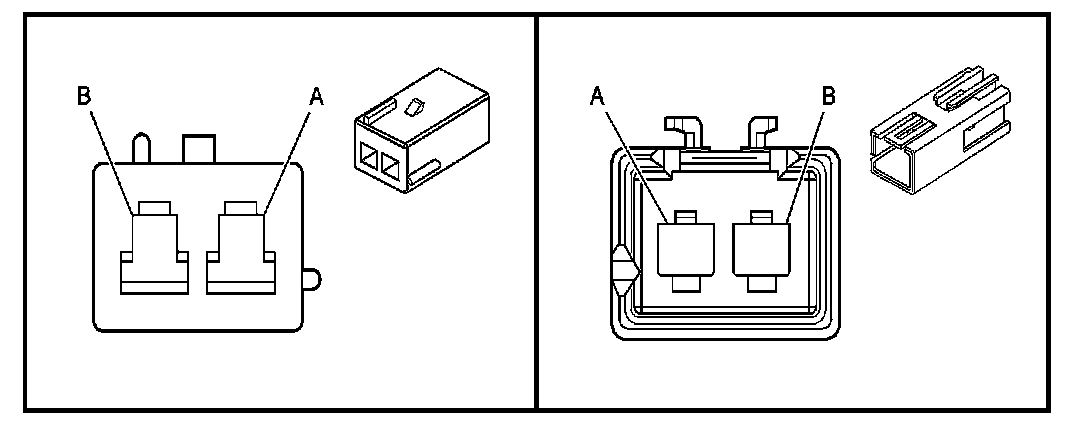

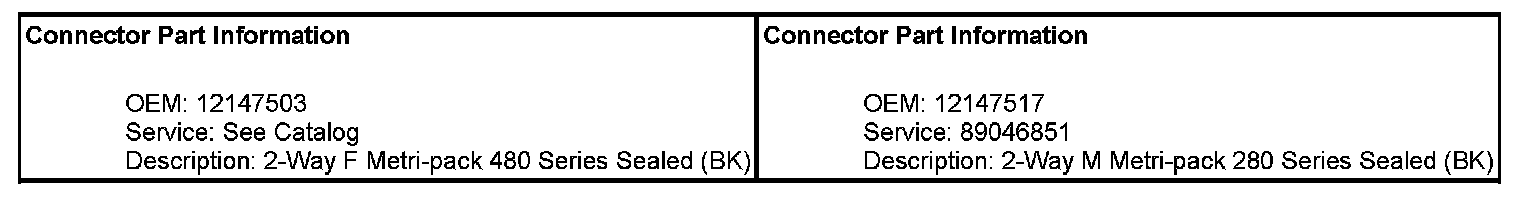

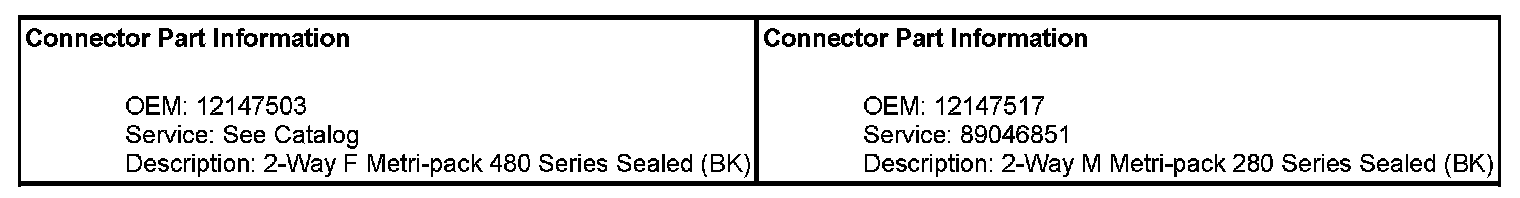

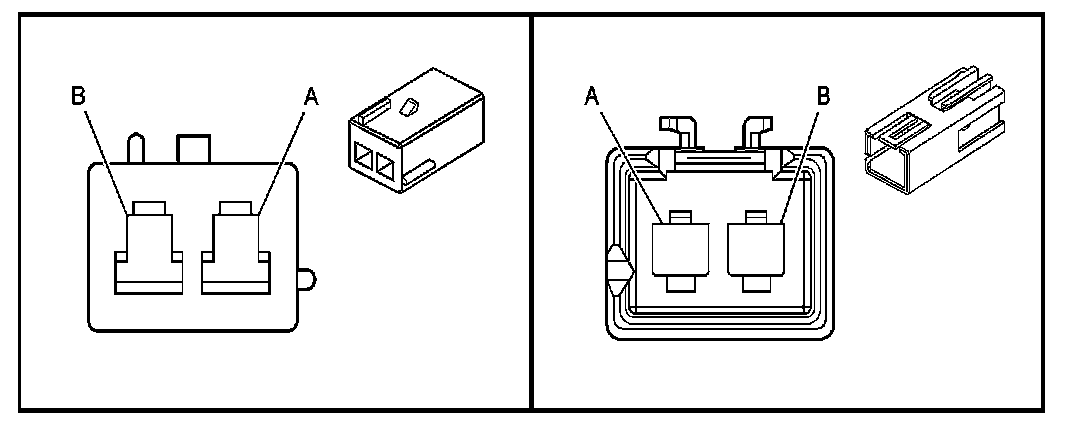

Inline Harness Connector End Views

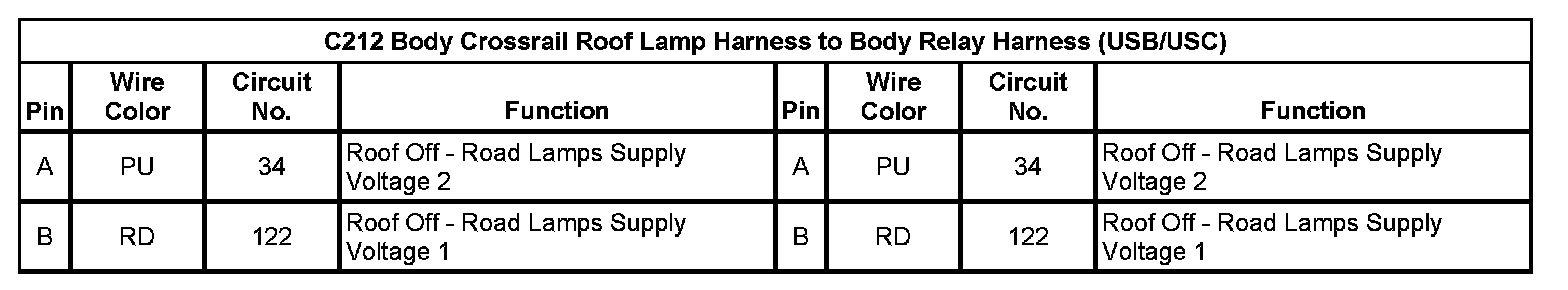

C212 Body Crossrail Roof Lamp Harness to Body Relay Harness (USB/USC)

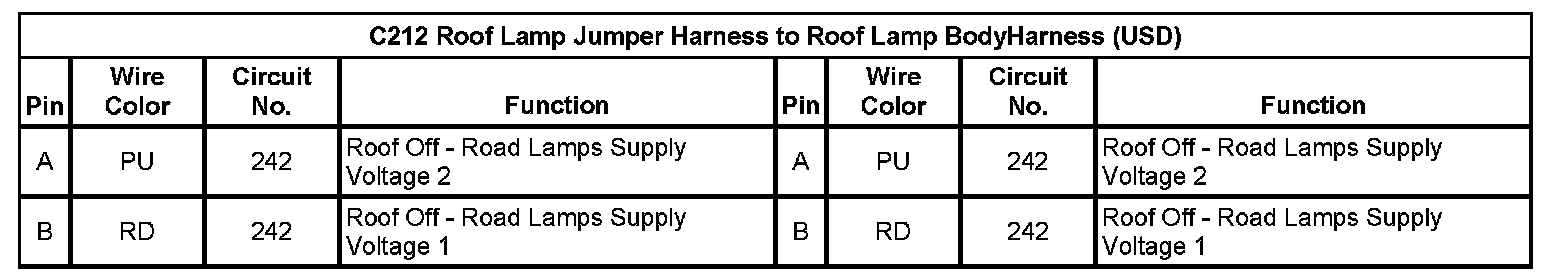

C212 Roof Lamp Jumper Harness to Roof Lamp Body Harness (USD)
