C211

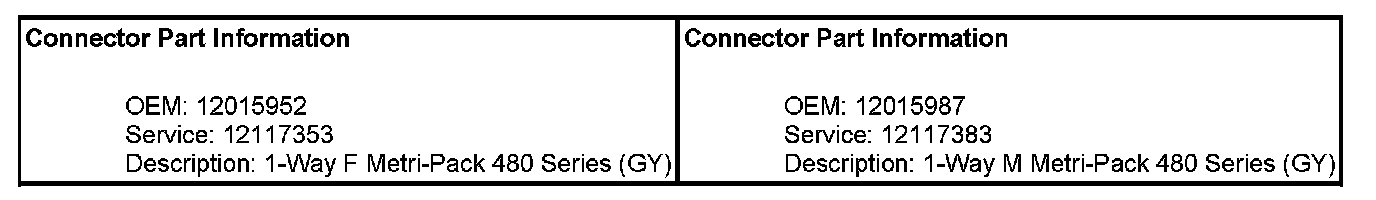

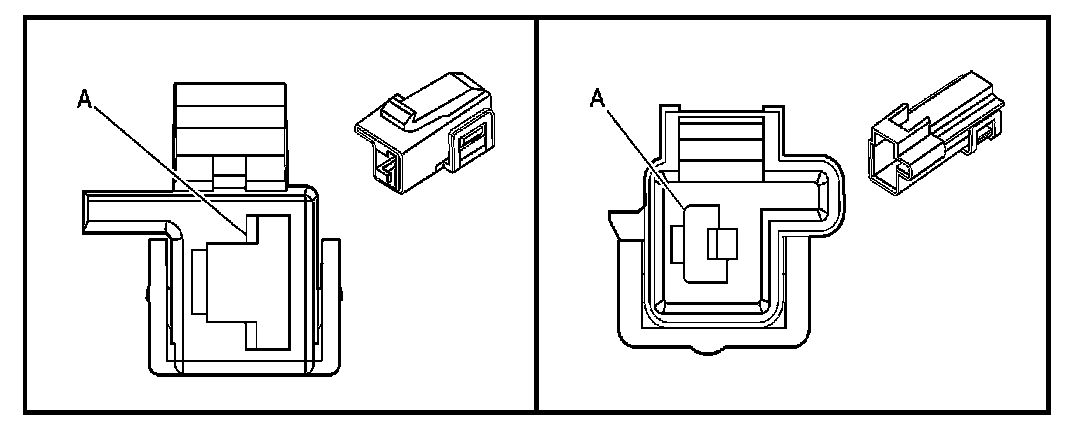

Inline Harness Connector End Views

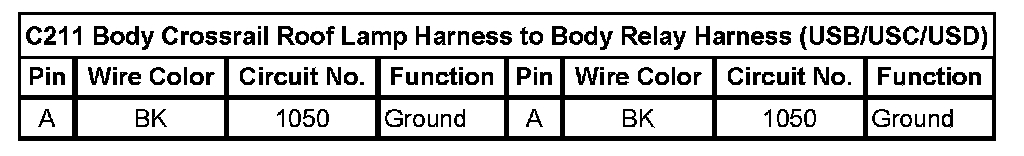

C211 Body Crossrail Roof Lamp Harness to Body Relay Harness (USB/USC/USD)
