C206

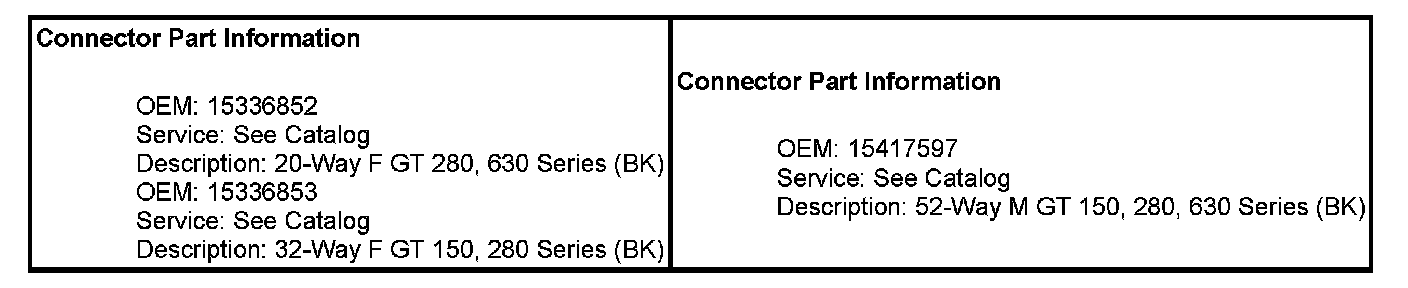

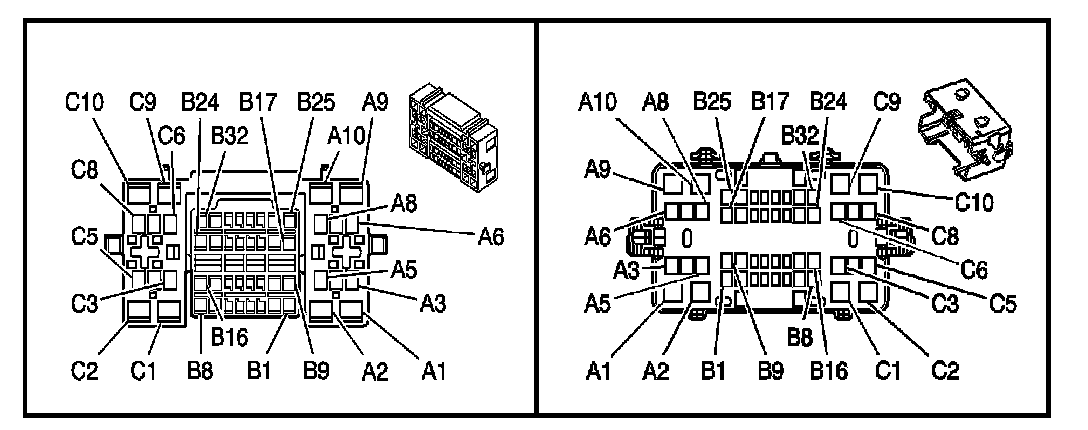

Inline Harness Connector End Views

C206 Steering Column Harness to I/P Overlay Harness (WS2)

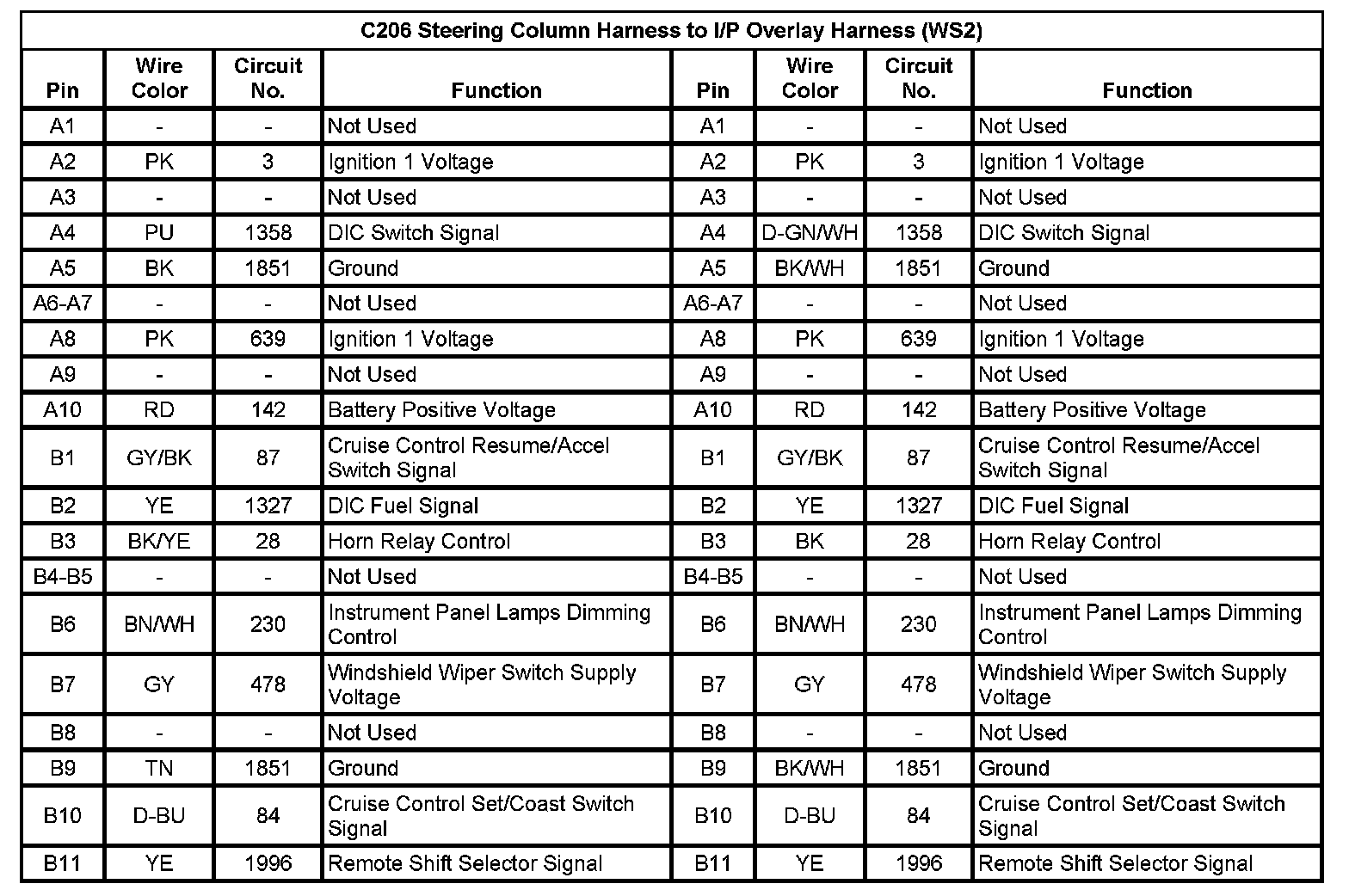

C206 Steering Column Harness To I/P Overlay Harness (WS2) (Pin A1 To B11):

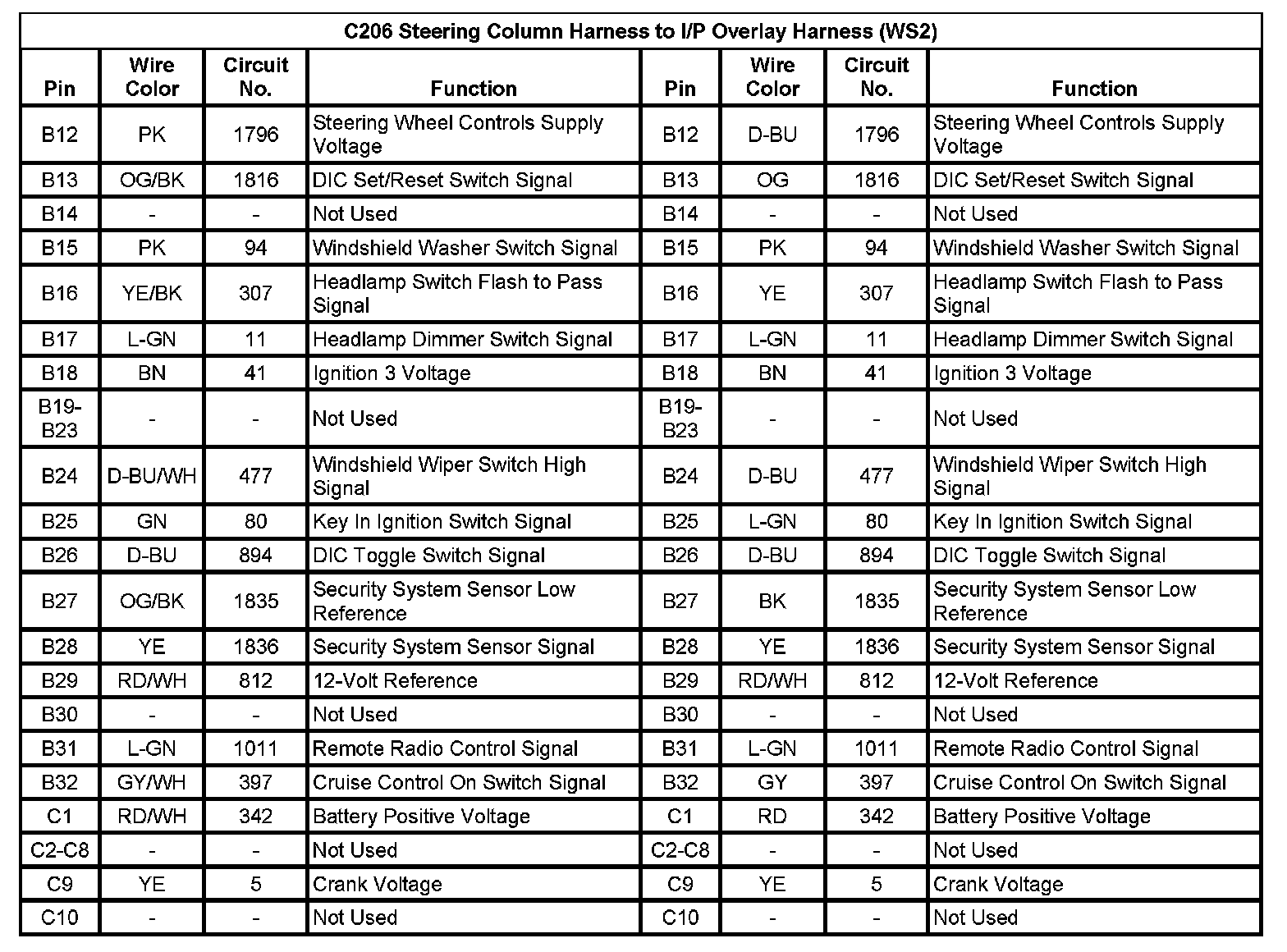

C206 Steering Column Harness To I/P Overlay Harness (WS2) (Pin B12 To C10):
