Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C200 - C299 >> C204

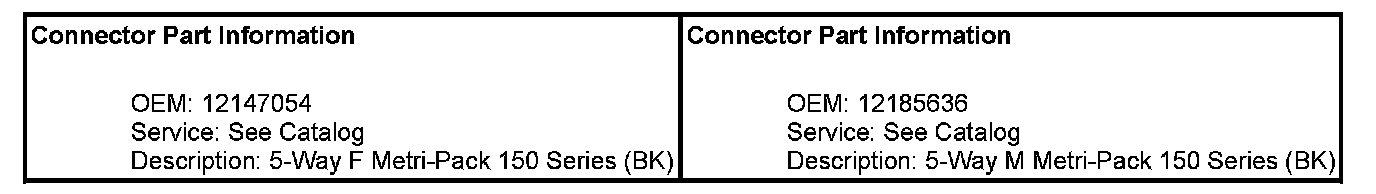

C204

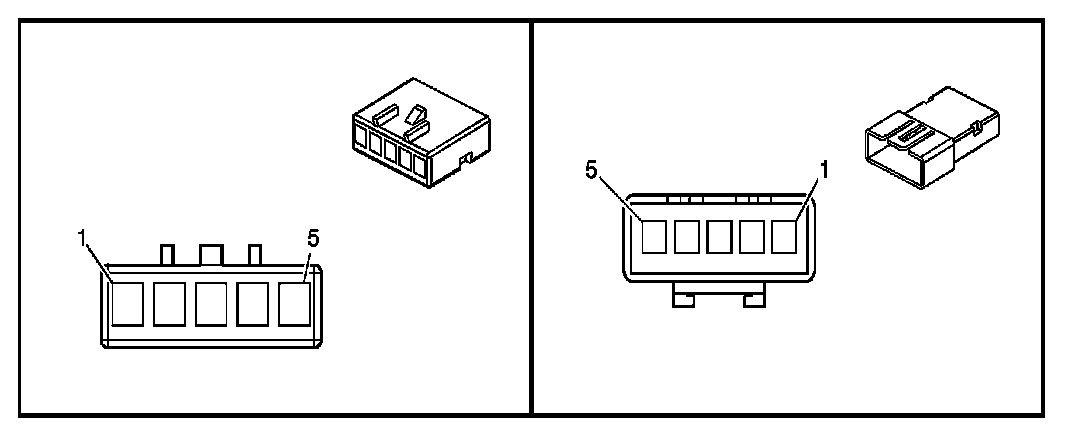

Inline Harness Connector End Views

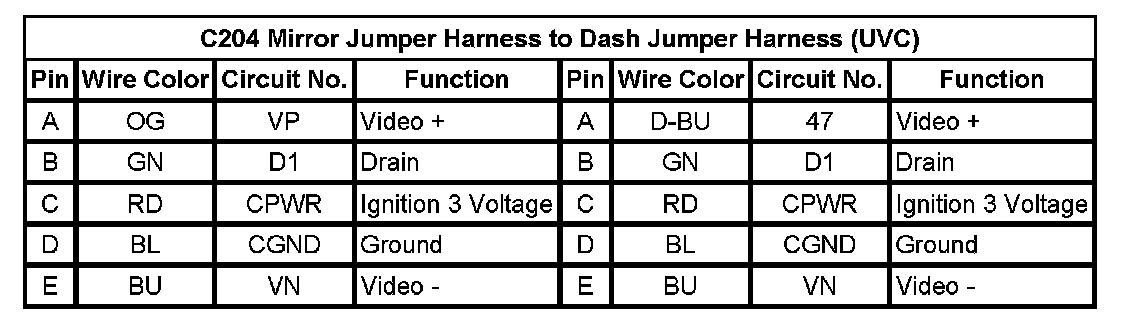

C204 Mirror Jumper Harness to Dash Jumper Harness (UVC)
