C201

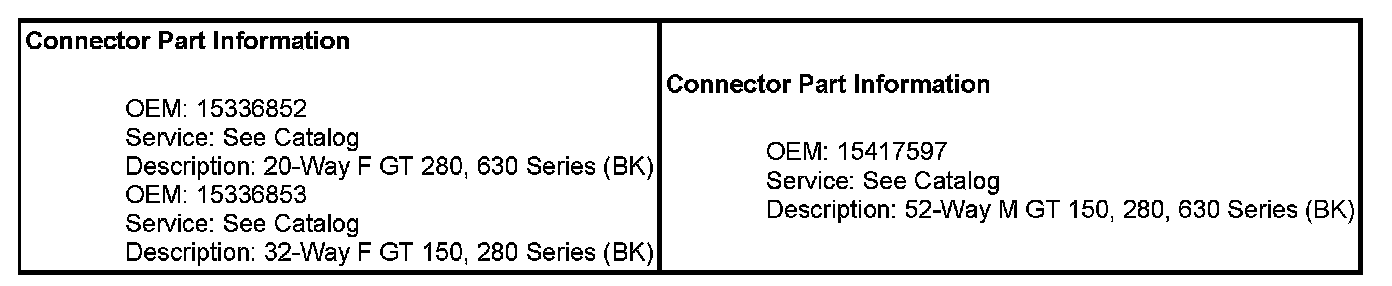

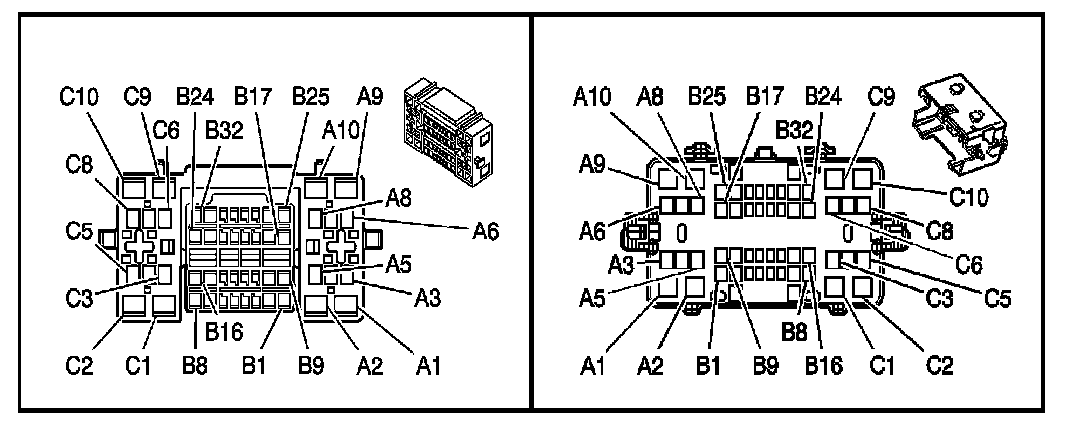

Inline Harness Connector End Views

C201 Steering Column Harness to I/P Harness (w/o WS2)

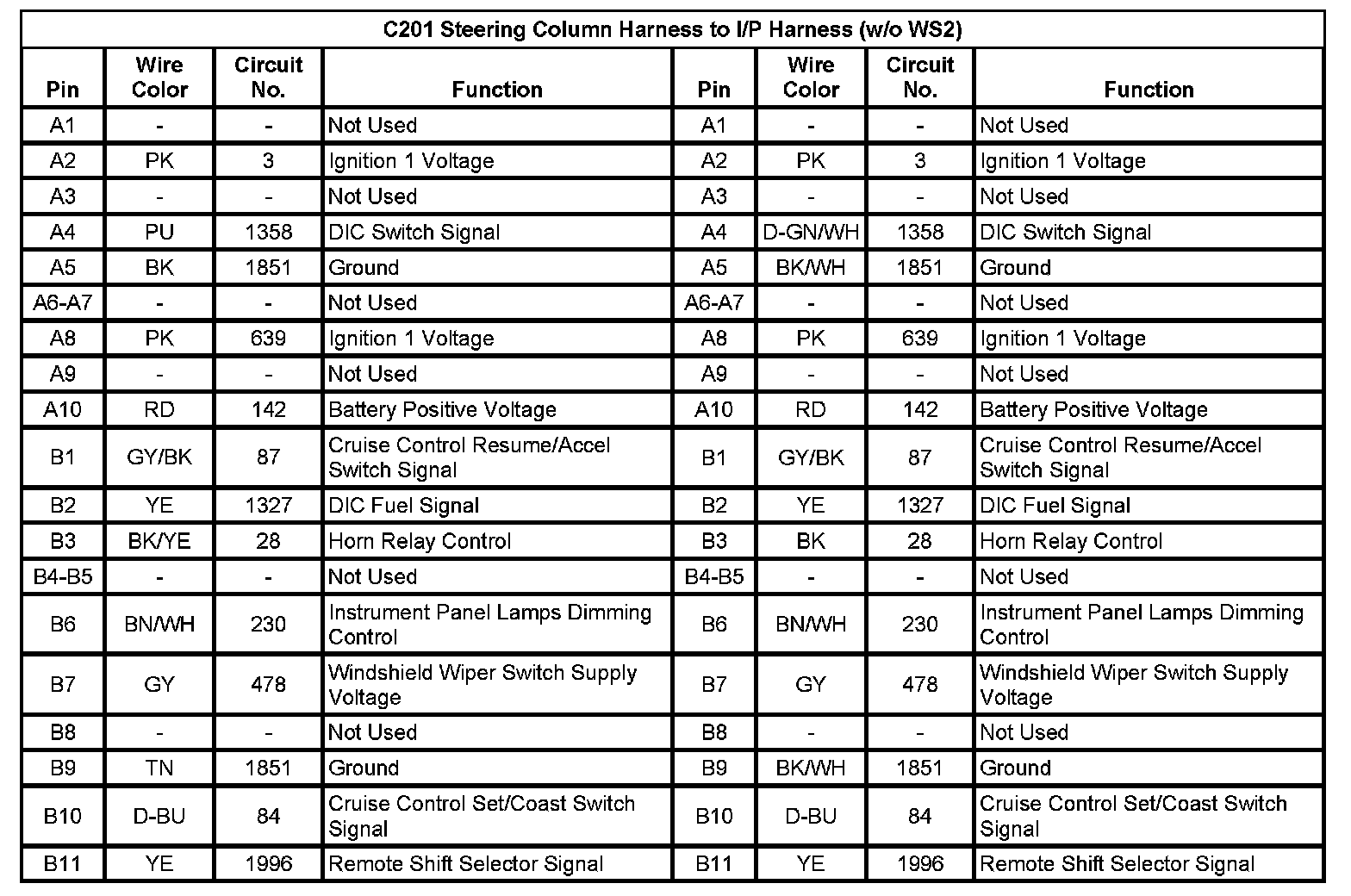

C201 Steering Column Harness To I/P Harness (w/o WS2) (Pin A1 To B11):

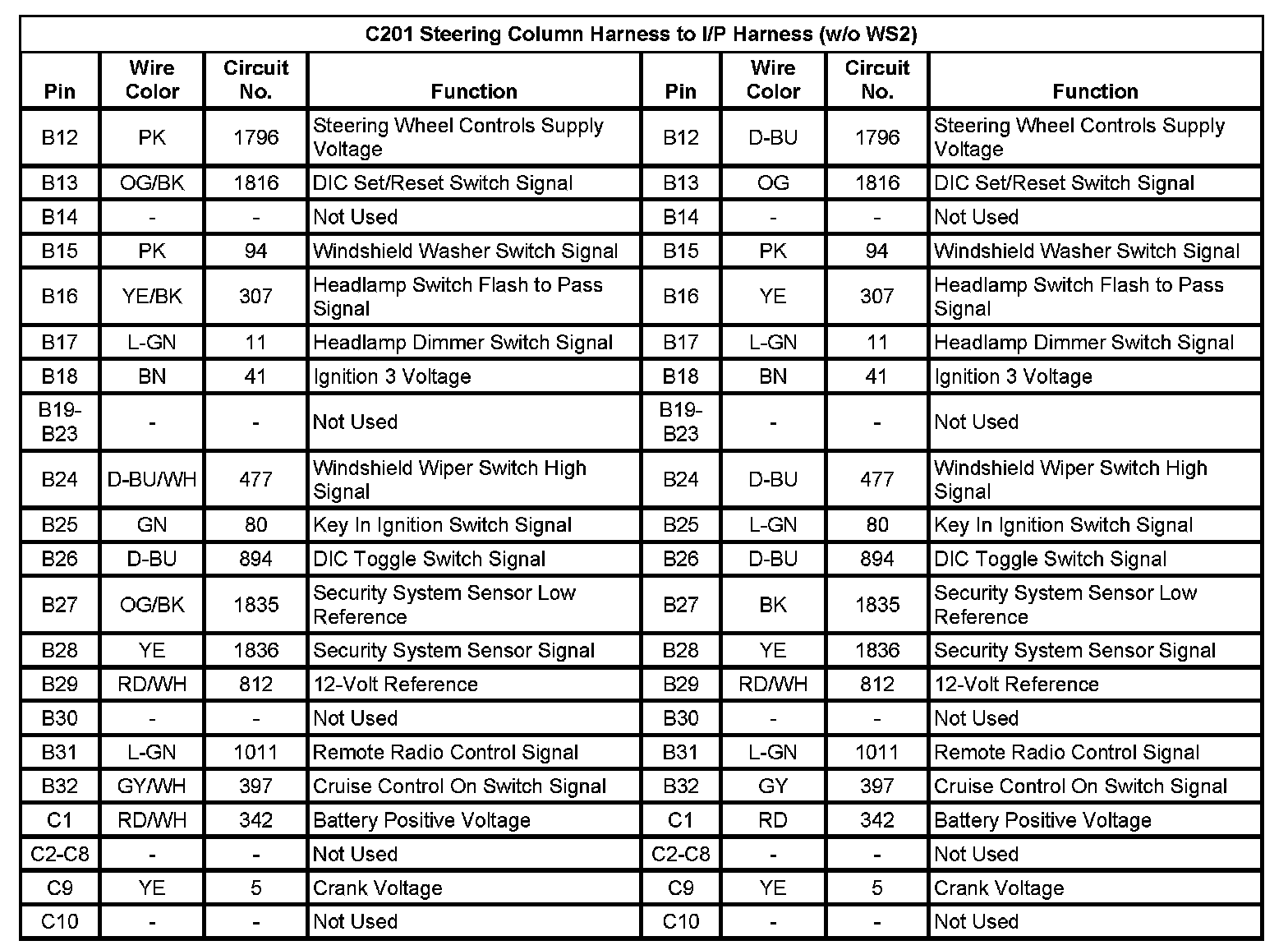

C201 Steering Column Harness To I/P Harness (w/o WS2) (Pin A1 To C10):

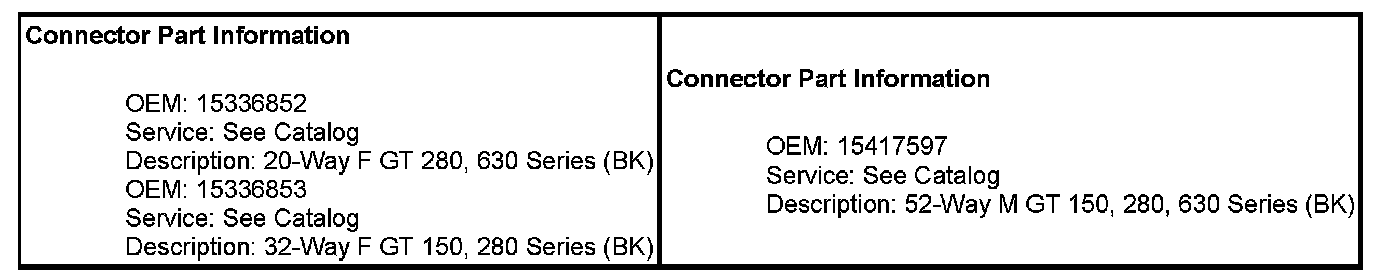

C201 I/P Overlay Harness to I/P Harness (WS2)

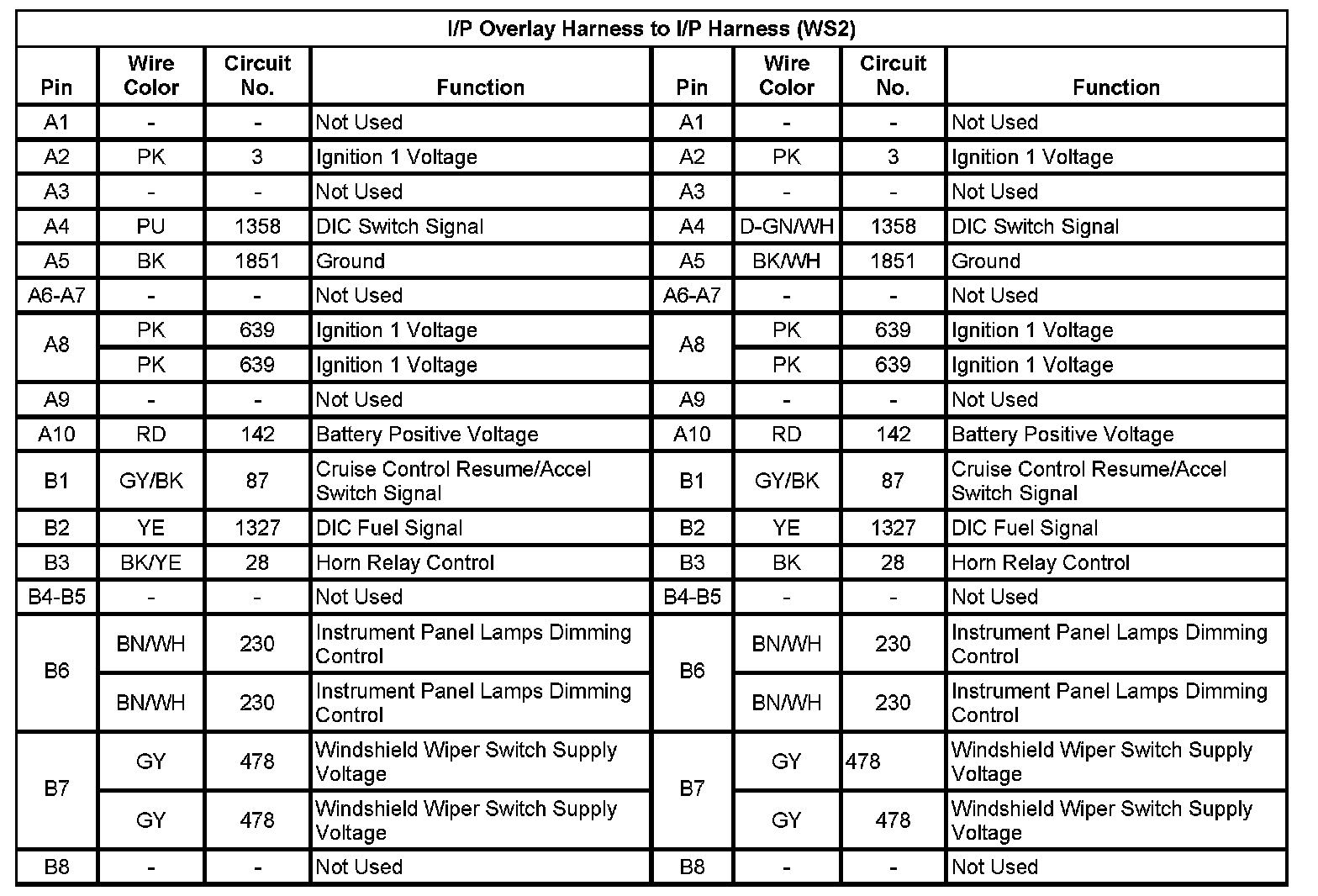

I/P Overlay Harness To I/P Harness (WS2) (Pin A1 To B8):

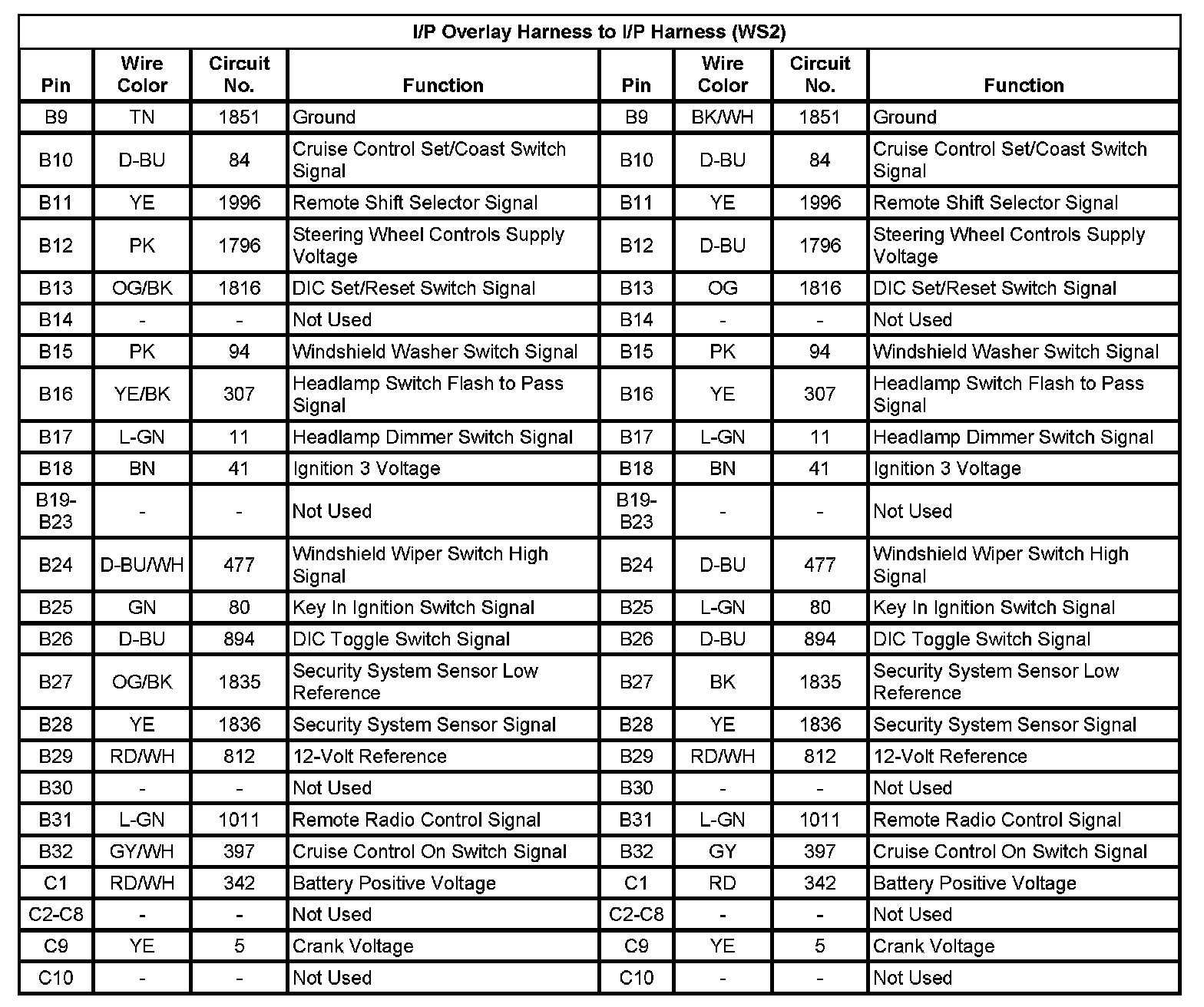

I/P Overlay Harness To I/P Harness (WS2) (Pin B9 To C10):
