Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C100 - C199 >> C148

C148

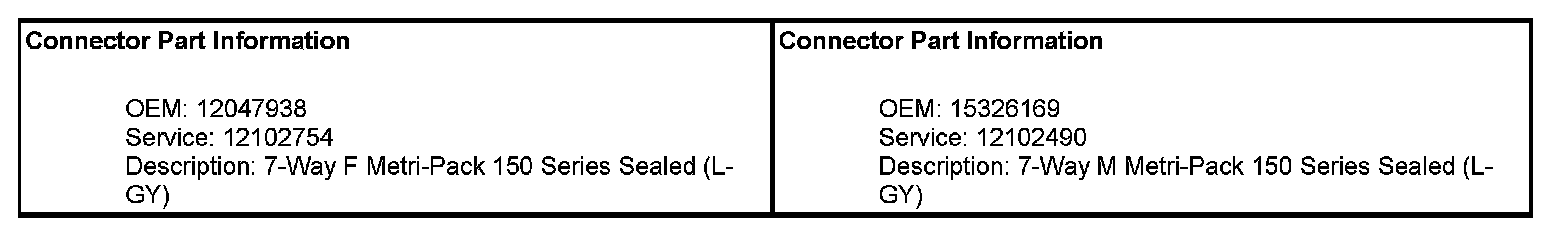

Inline Harness Connector End Views

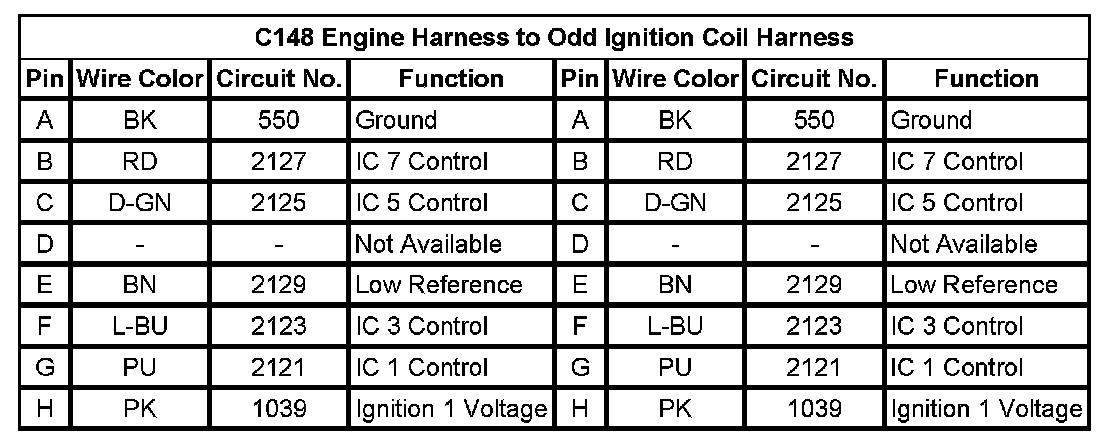

C148 Engine Harness to Odd Ignition Coil Harness
