Splice Pack SP206



Power and Grounding Component Views

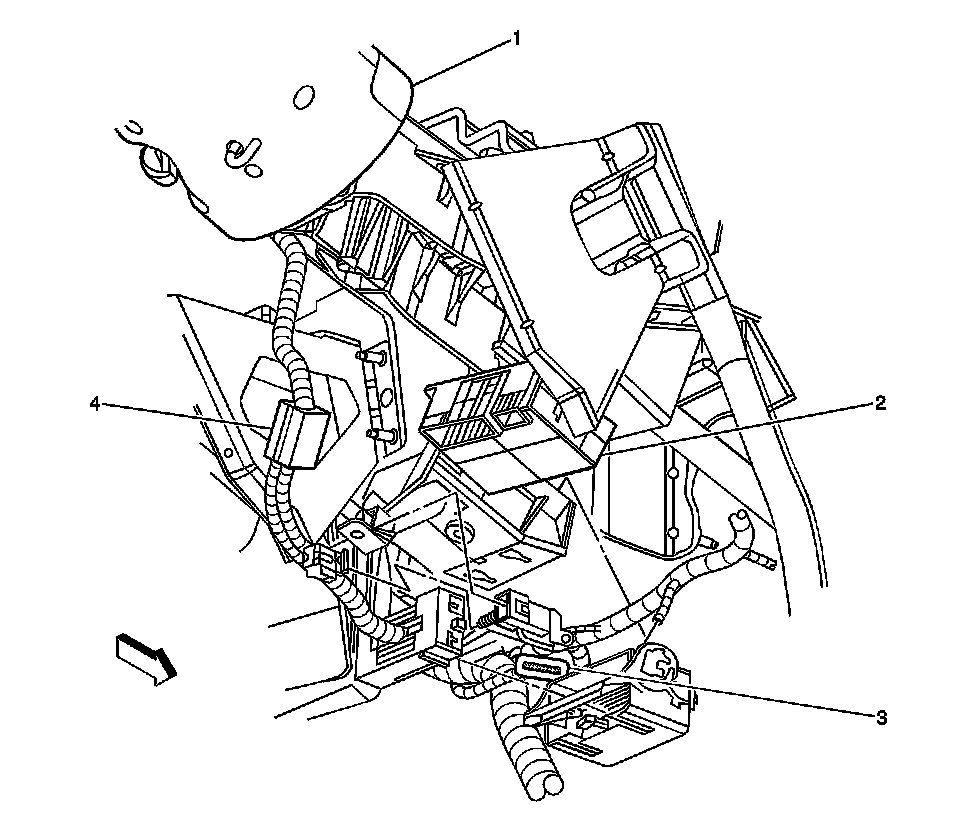

Splice Pack SP206




1 - Steering Column
2 - Transfer Case Shift Control Module
3 - Splice Pack SP206
4 - Steering Wheel Controls Backlight Fuse
