Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> I/P Views >> Relay Block - I/P

Relay Block - I/P

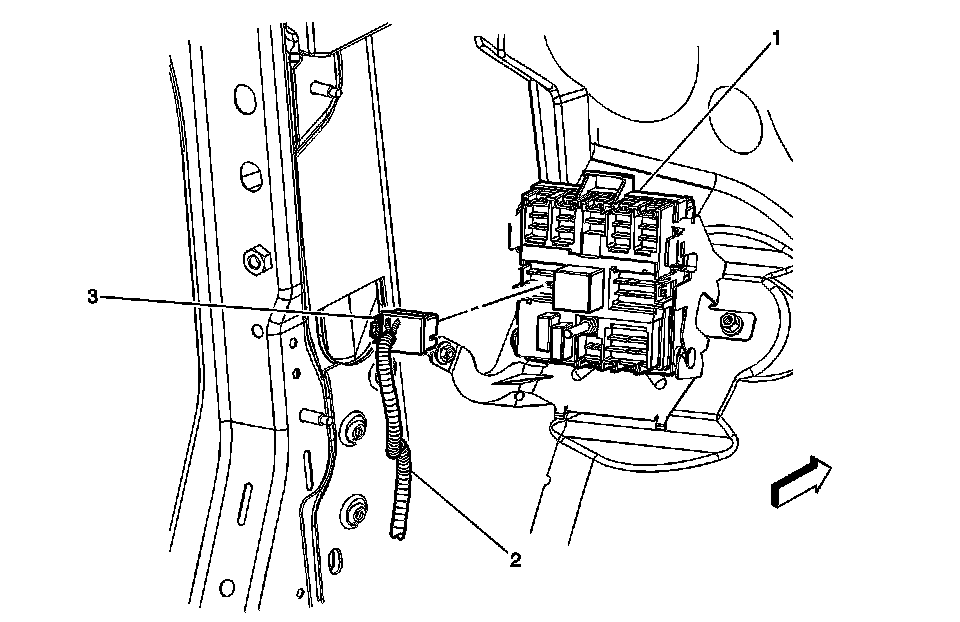

Power and Grounding Component Views

Relay Block - I/P




1 - Relay Block - I/P
2 - Body Harness
3 - Relay Block - I/P - C10 (NAT)
