Left Side of I/P

Power and Grounding Component Views

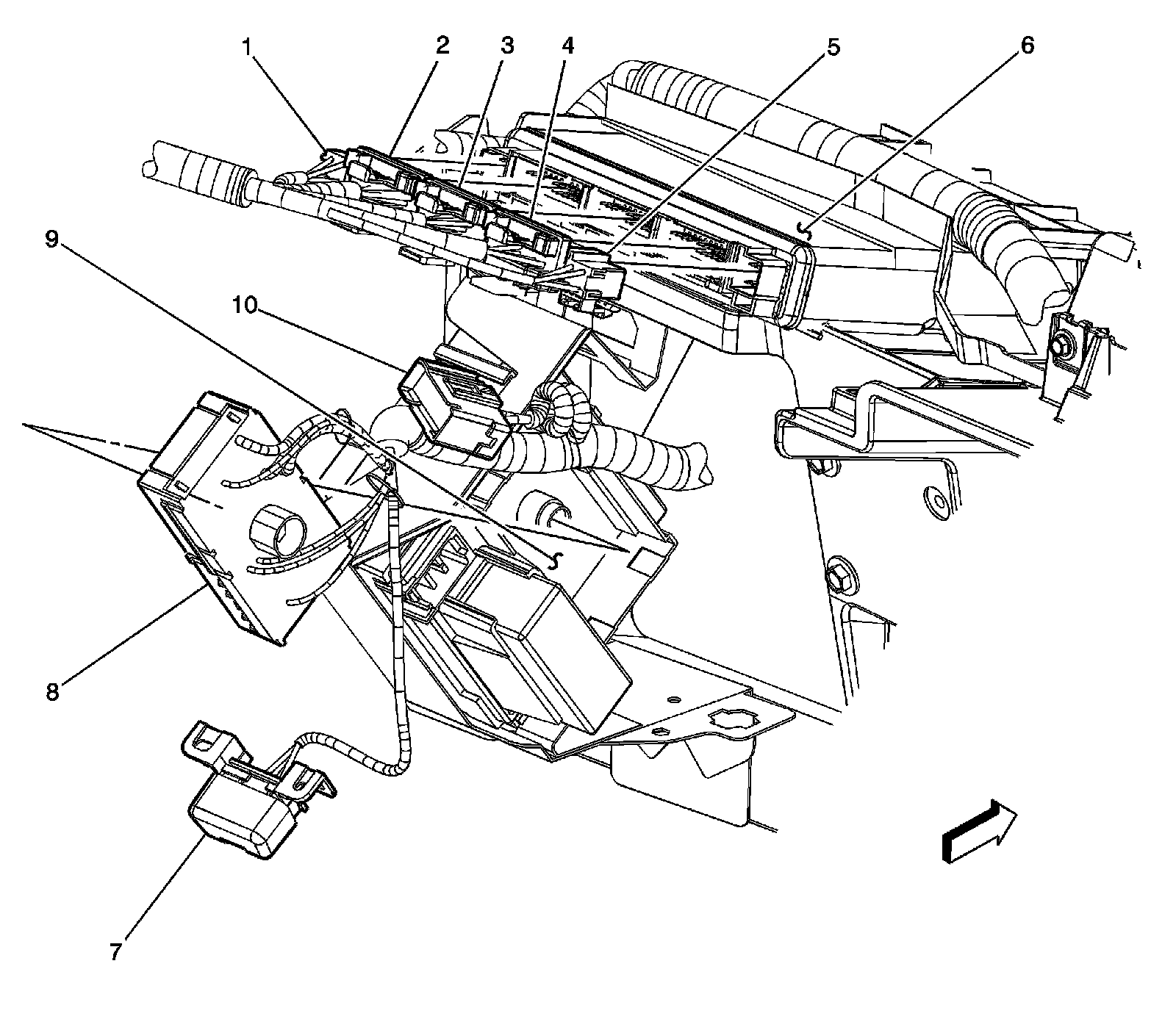

Left Side of I/P




1 - Body Control Module (BCM) - C1
2 - BCM - C2
3 - BCM - C4
4 - BCM - C3
5 - BCM - C5
6 - BCM
7 - Data Link Connector (DLC)
8 - Fuse Block - I/P - C1
9 - Fuse Block - I/P
10 - Splice Pack SP205
