Fuse Block - I/P



Power and Grounding Component Views

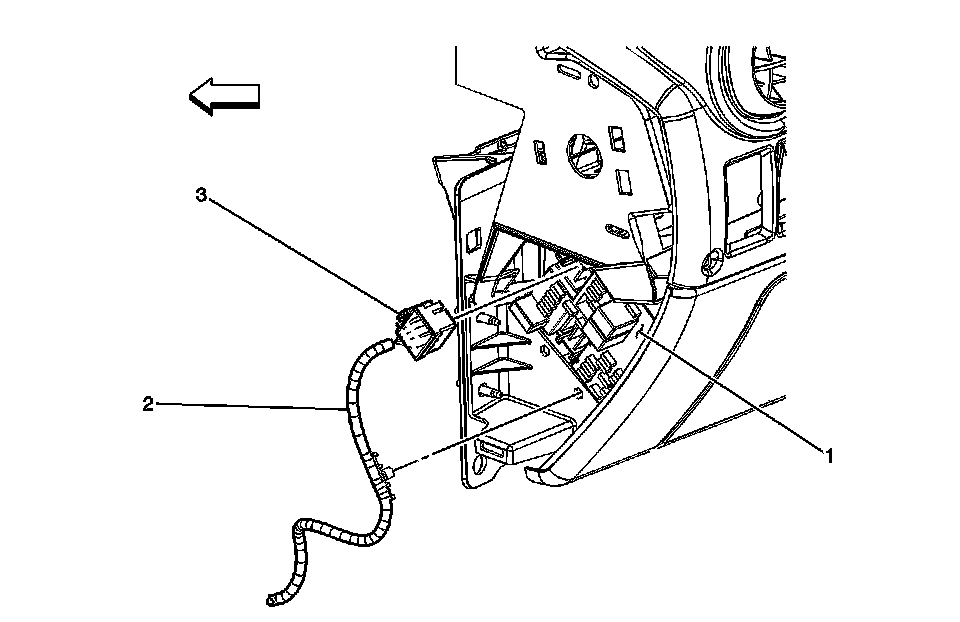

Fuse Block - I/P




1 - Fuse Block - I/P
2 - Driver Door Harness
3 - Fuse Block - I/P - C3 (BLK)
