Home
>>
Hummer
>>
2007
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>
Ground Views
>>
G410 and SP410 (Except SUT)
G410 and SP410 (Except SUT)
Power and Grounding Component Views

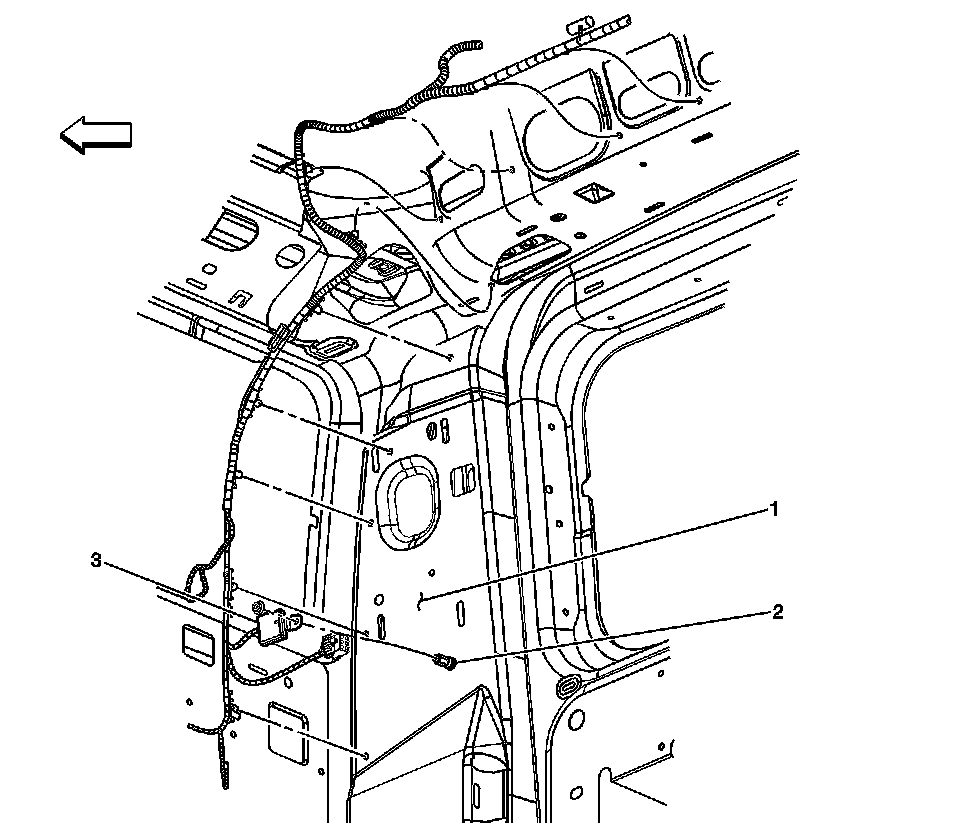

G410 and SP410 (Except SUT)
1
- Inner Side Panel - RH
2
- G410
3
- SP410
