G300

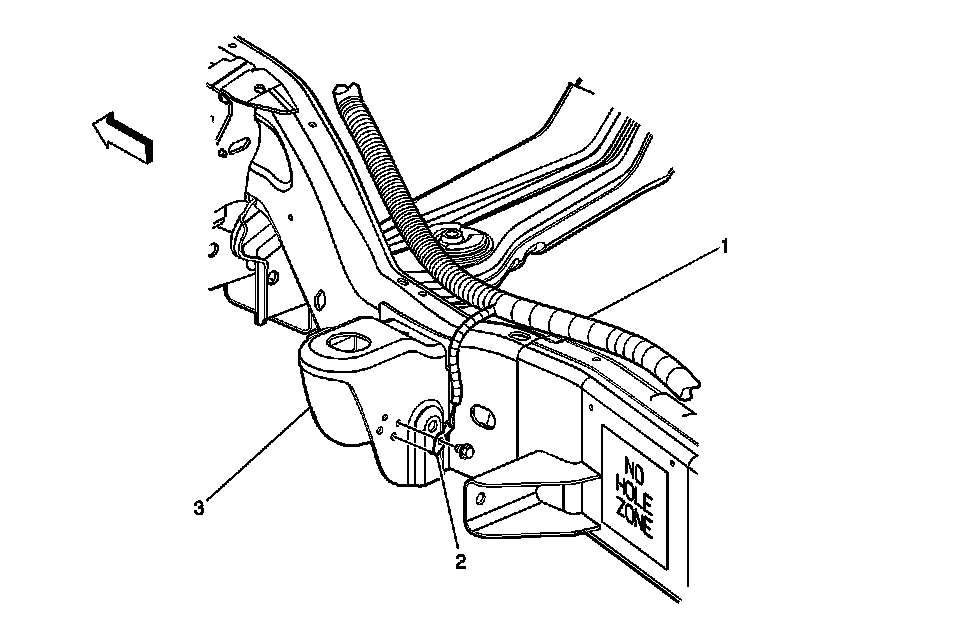

Power and Grounding Component Views

G300




1 - Chassis Harness
2 - G300
3 - Left Frame Body Mount
