Air Suspension Views



Power and Grounding Component Views

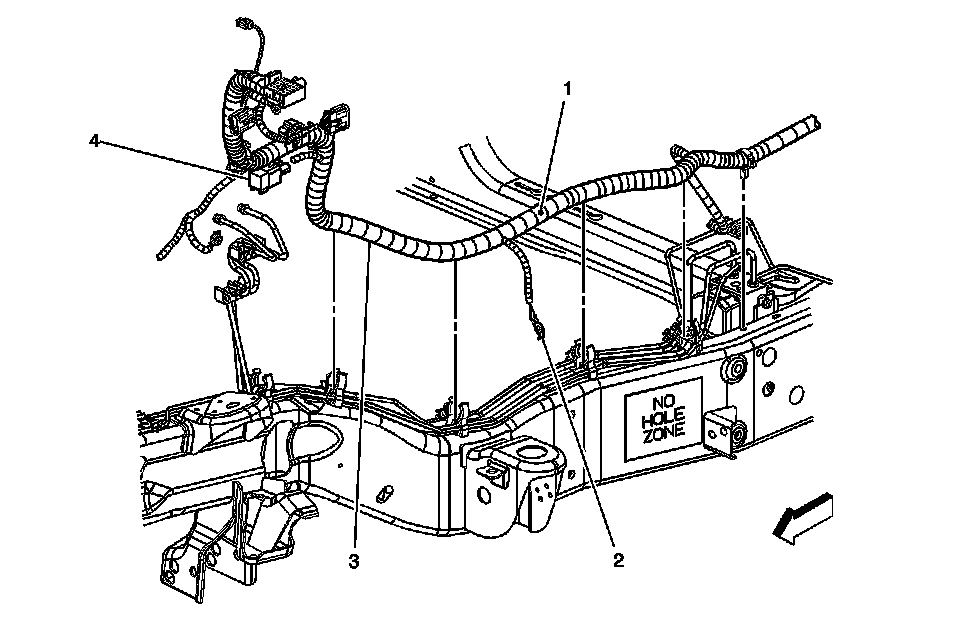

Electronically Controlled Air Suspension Relay and G300




1 - S304
2 - G300
3 - Chassis Harness
4 - Electronically Controlled Air Suspension Relay
