Ground Strap: Service and Repair

Engine Ground Strap Replacement

Removal Procedure

1. Remove the left hand catalytic convert.

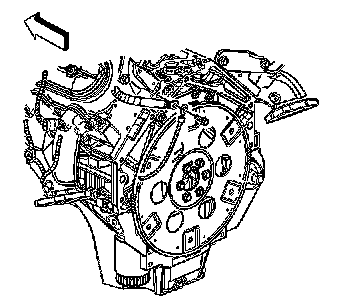

2. Remove the engine wiring harness ground bolt.
3. Lower the vehicle.

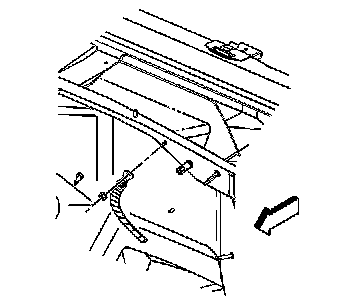

4. Remove the ground strap nut from the stud at the front of dash.
5. Remove the ground strap from the stud.

Installation Procedure




1. Install the ground strap to the stud.

Notice: Refer to Fastener Notice.

2. Install the ground strap nut to the stud at the front of dash.

Tighten the nut to 9 N.m (80 lb in).

3. Raise the vehicle. Refer to Vehicle Lifting.




4. Position the ground strap and engine wiring harness ground.
5. Install the engine wiring harness ground bolt.

Tighten the bolt to 16 N.m (12 lb ft).

6. Install the left hand catalytic convert.
7. Lower the vehicle.
