Lighting Systems Component Views

Lighting Systems Component Views

Front Exterior Lights

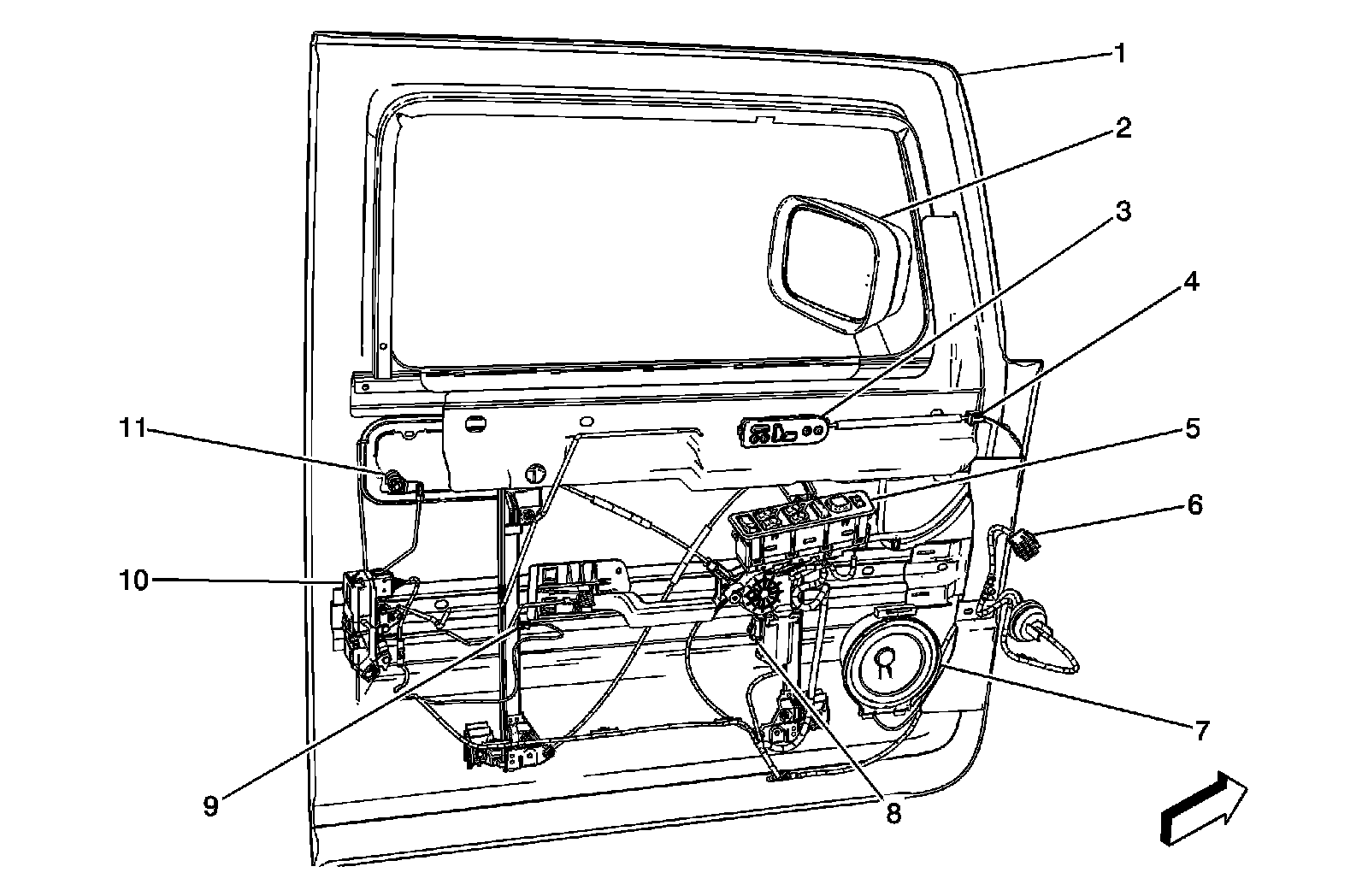

Driver Door




1 - Driver Door
2 - Outside Rearview Mirror
3 - Memory/Heated Seat Switch
4 - Driver Door Module (DDM) Connector - C5
5 - Driver Door Module (DDM)
6 - Fuse Block - I/P - C3
7 - Speaker - LF Door
8 - Window Motor - Driver
9 - Door Courtesy Lamp - LF
10 - Door Latch Assembly - Driver
11 - Door Lock Cylinder

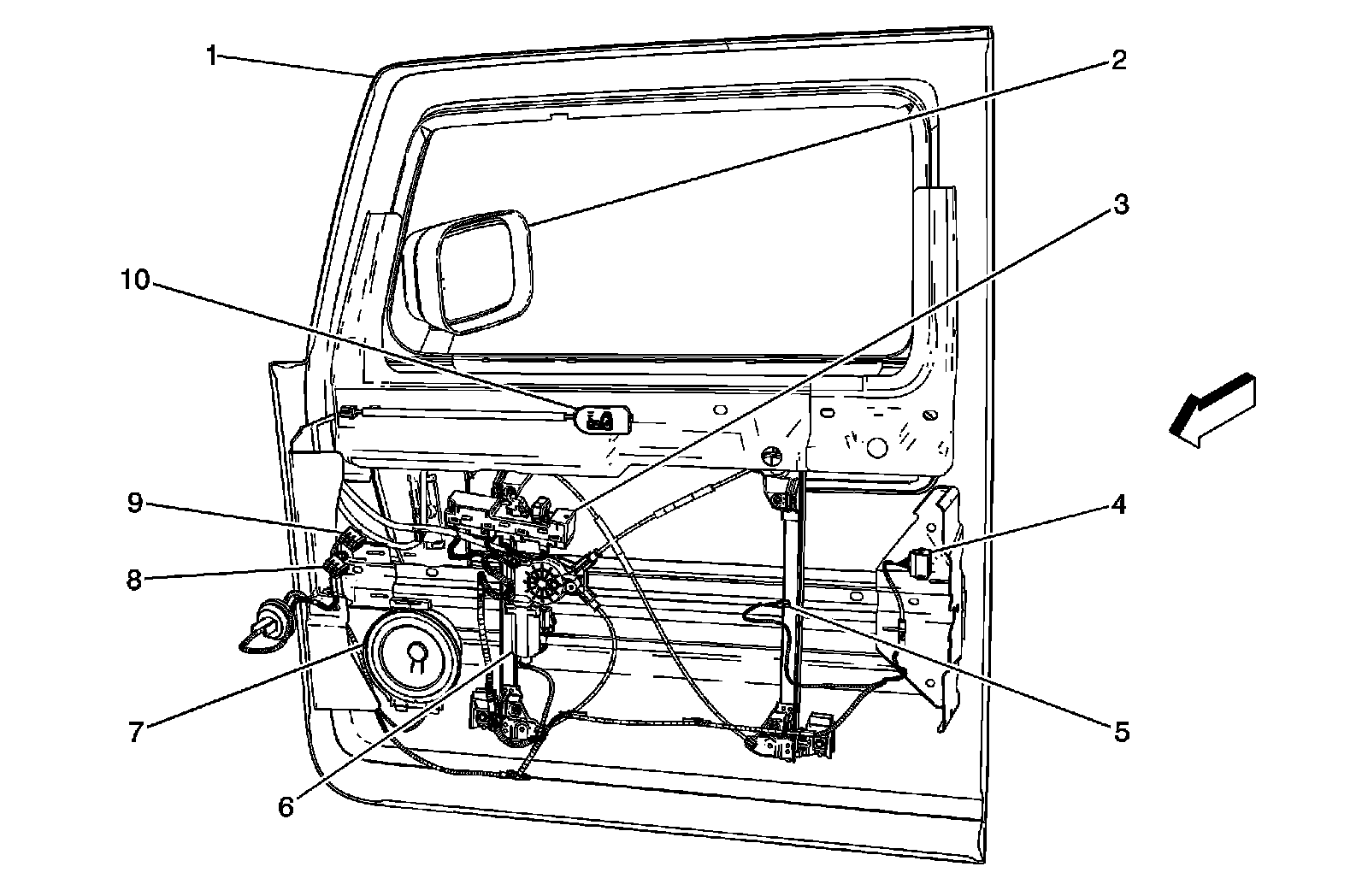

Passenger Door





1 - Passenger Door
2 - Outside Rearview Mirror
3 - Passenger Door Module (PDM)
4 - Door Latch Assembly - Passenger
5 - Door Courtesy Lamp - RF
6 - Window Motor - Passenger
7 - Speaker - RF Door
8 - Junction Block - I/P - C2
9 - Junction Block - I/P - C7
10 - Heated Seat Switch
