Lighting Systems Connector End Views



Lighting Systems Connector End Views

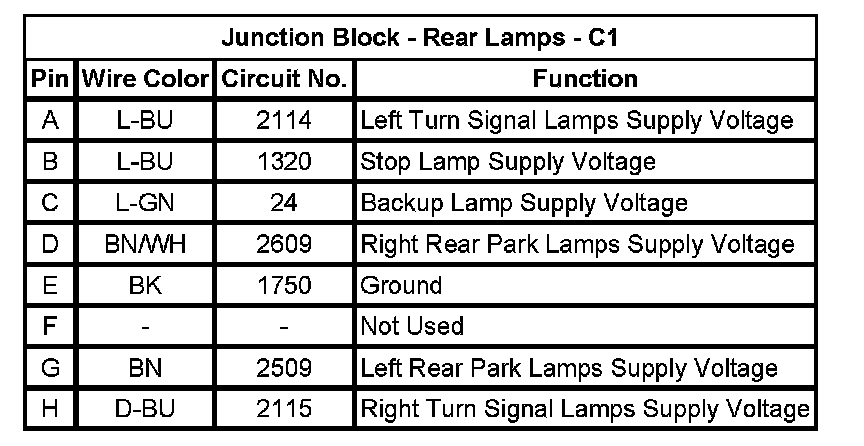

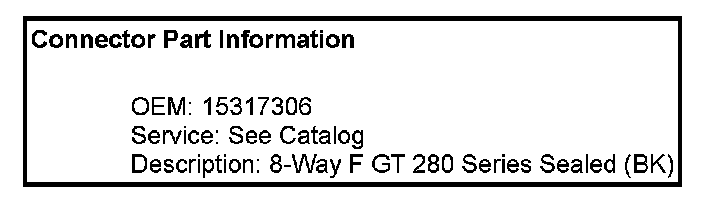

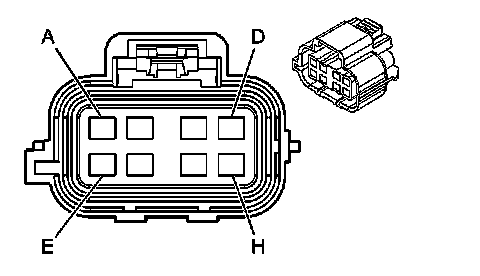

Junction Block - Rear Lamps - C1














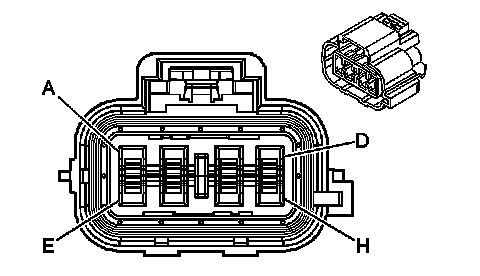

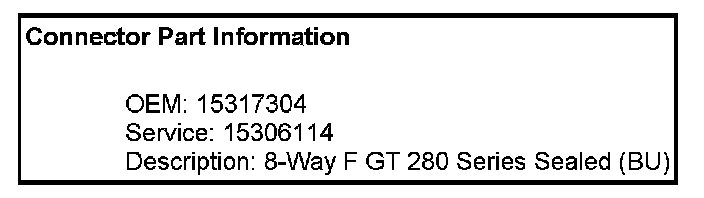

Junction Block - Rear Lamps - C2

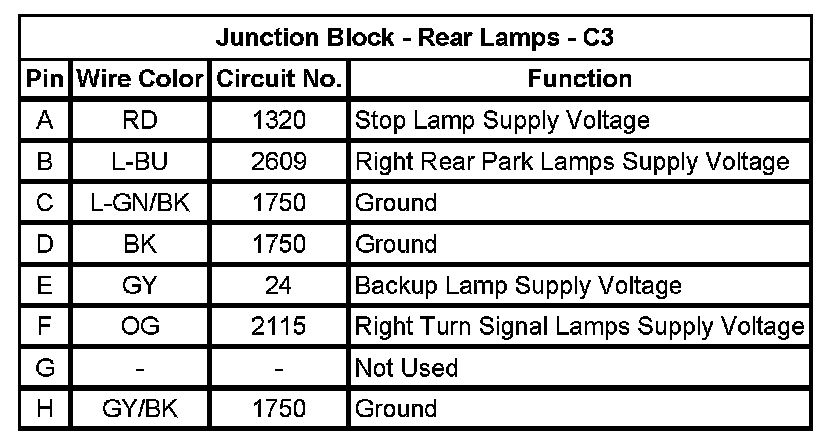

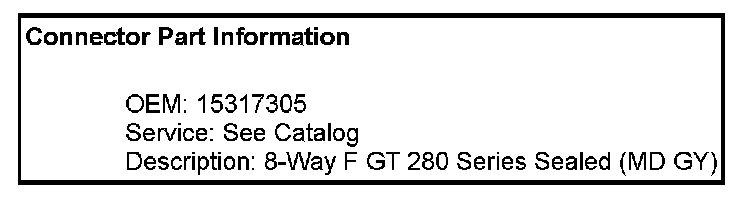

Junction Block - Rear Lamps - C3
