Connector Views

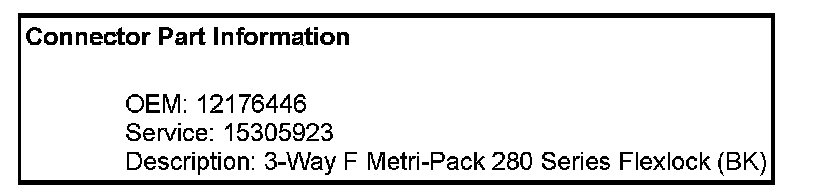

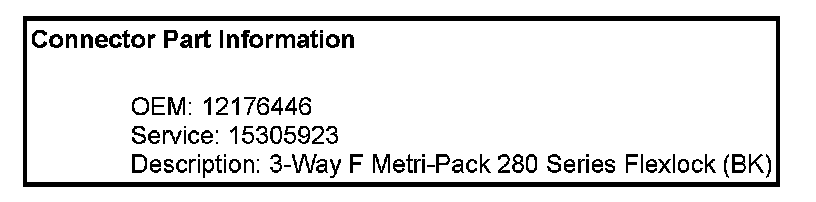

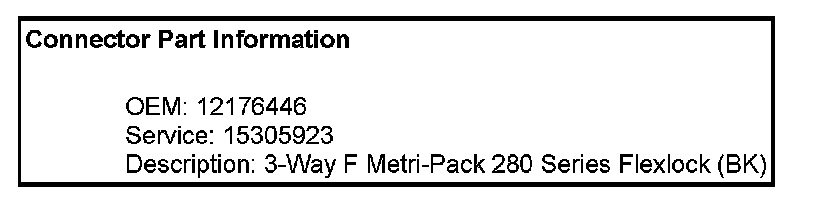

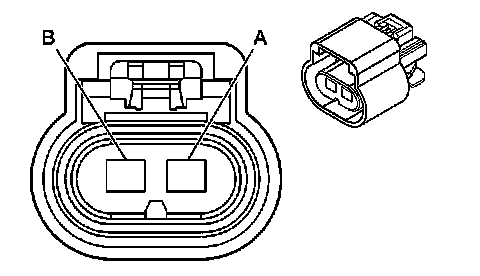

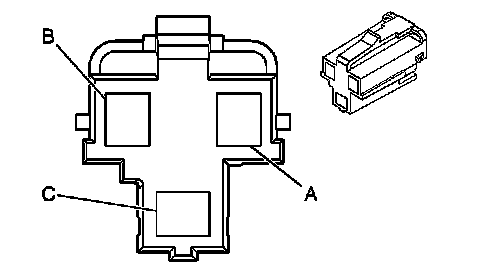

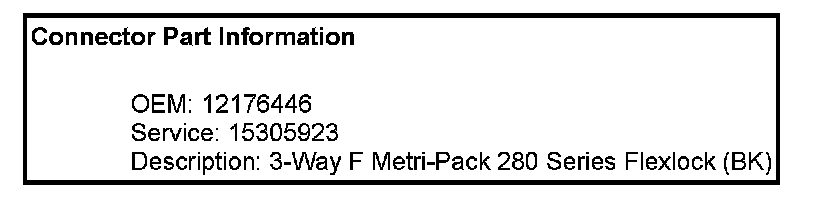

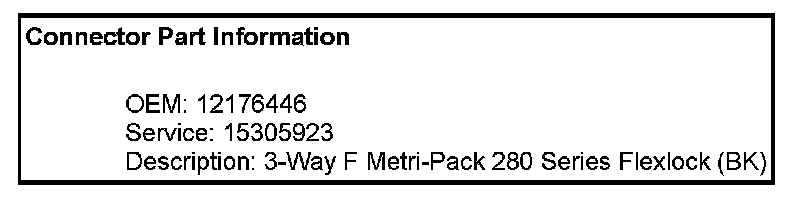

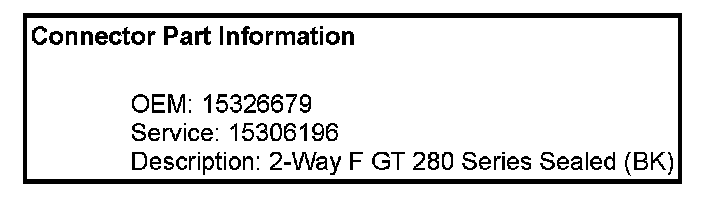

Power Outlet Connector End Views

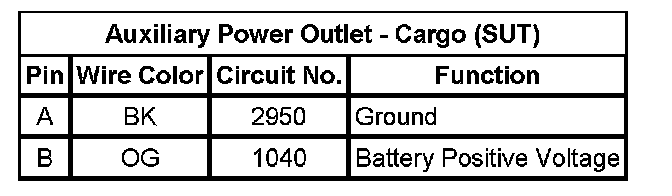

Auxiliary Power Outlet - Cargo (SUT)

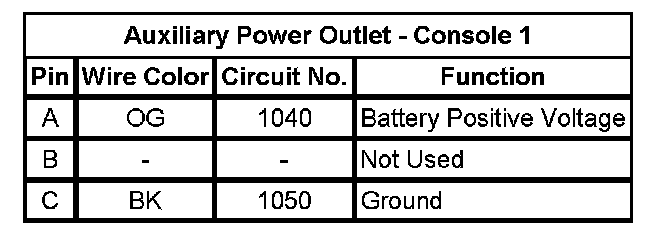

Auxiliary Power Outlet - Console 1

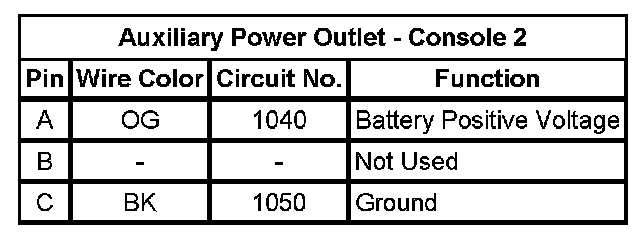

Auxiliary Power Outlet - Console 2

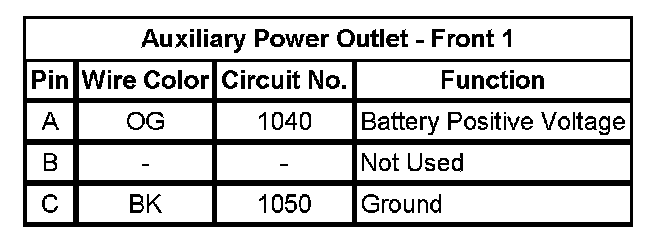

Auxiliary Power Outlet - Front 1

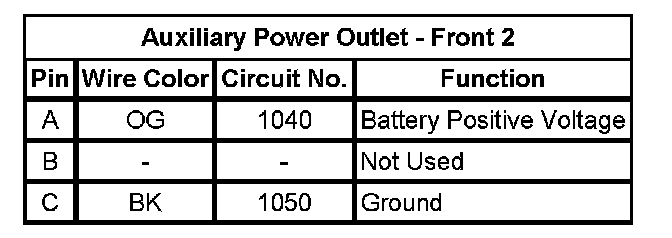

Auxiliary Power Outlet - Front 2

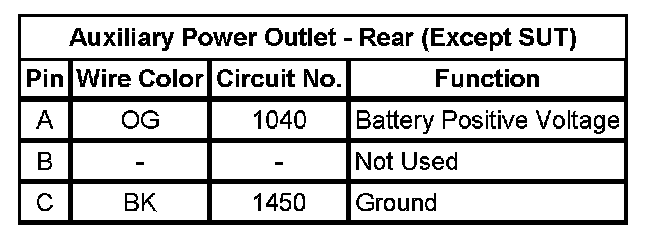

Auxiliary Power Outlet - Rear (Except SUT)
