Wiper Switch: Service and Repair

Rear Window Wiper and Washer Switch Replacement

Removal Procedure

1. Remove the trim bezel.

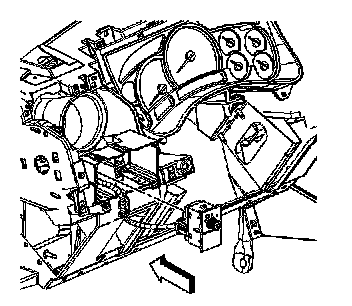

2. Insert a flat bladed tool at the top and bottom of the switch assembly in order to remove the switch assembly.
3. Pull out the switch assembly in order to gain access to the connector.
4. Disconnect the electrical connector.
5. Remove the switch from the I/P.

Installation Procedure




1. Connect the electrical connector to the switch assembly.
2. Push in the switch assembly until both tabs click in place.
3. Install the trim bezel.
