Rear Side Door Window Switch Replacement



Rear Side Door Window Switch Replacement

Removal Procedure

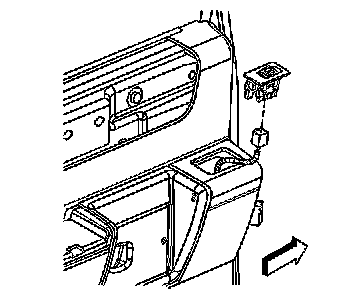

1. Use a suitable flat bladed tool to remove the power window switch from the door panel.
2. Remove the power window switch from the connector.

Installation Procedure




1. Install the power window switch to the connector.
2. Align the power window switch with the opening in the door panel and press to seat the switch.
