Door Lock and Side Window Switch Replacement - Passenger Side

Door Lock and Side Window Switch Replacement - Passenger

Removal Procedure

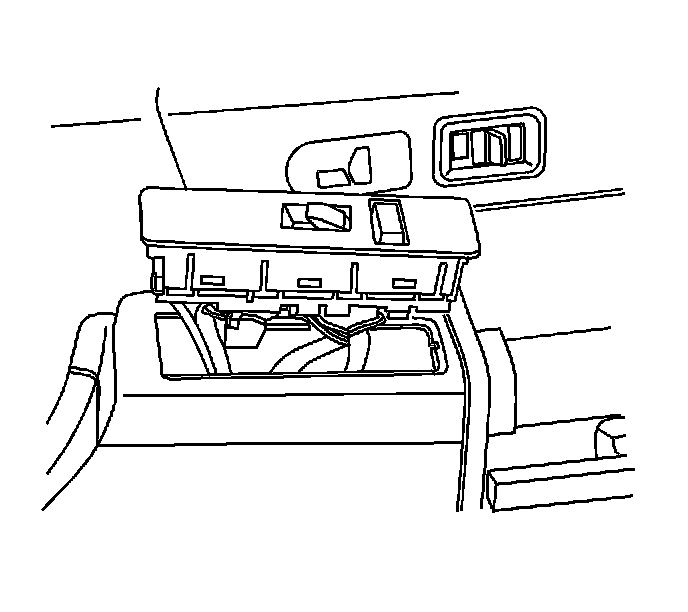

1. Use a suitable flat-bladed tool to remove the door lock and side window switch from the door panel.
2. Disconnect the electrical connector from the switch.

Installation Procedure




1. Connect the electrical connector to the door lock and side window switch.
2. Align the switch with the opening in the door panel. Press to seat the switch.
3. Program the keyless entry transmitters if the module has been replaced. Refer to Transmitter Programming.
4. Refer to Control Module References for programming and setup information. Programming and Relearning
