Inflator Air Switch Replacement (SUV)



Inflator Air Switch Replacement (SUV)

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.

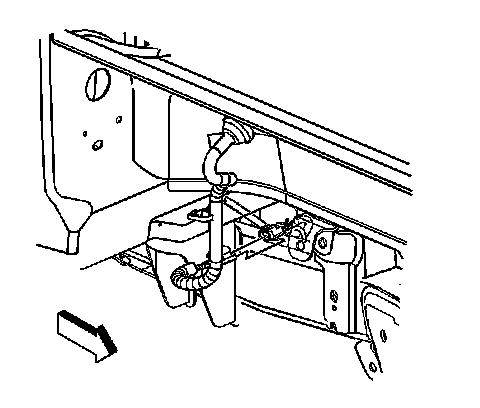

2. Disconnect the air inflator switch harness and the air line from the air compressor.
3. Lower the vehicle.

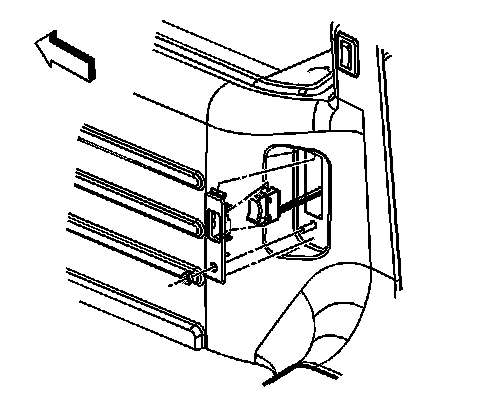

4. Remove the inflator retaining nut.
5. Remove the air inflator switch from the trim bezel.
6. Remove the rear quarter lower trim panel.




7. Remove the air inflator switch harness grommet from the body
8. Remove the air inflator switch from the vehicle.

Installation Procedure




1. Install the air inflator switch and harness assembly to the vehicle.
2. Install the air inflator switch harness grommet to the body.
3. Install in the rear quarter lower trim panel.




4. Install the air inflator switch to the trim bezel.
5. Install the inflator retaining nut.
6. Raise the vehicle.
7. Connect the air inflator switch harness and the air line to the air compressor.
8. Lower the vehicle.
