Inflator Air Switch Replacement (SUT)

Inflator Air Switch Replacement (SUT)

Removal Procedure




1. Open the rear liftgate.
2. Open the inflator switch door.

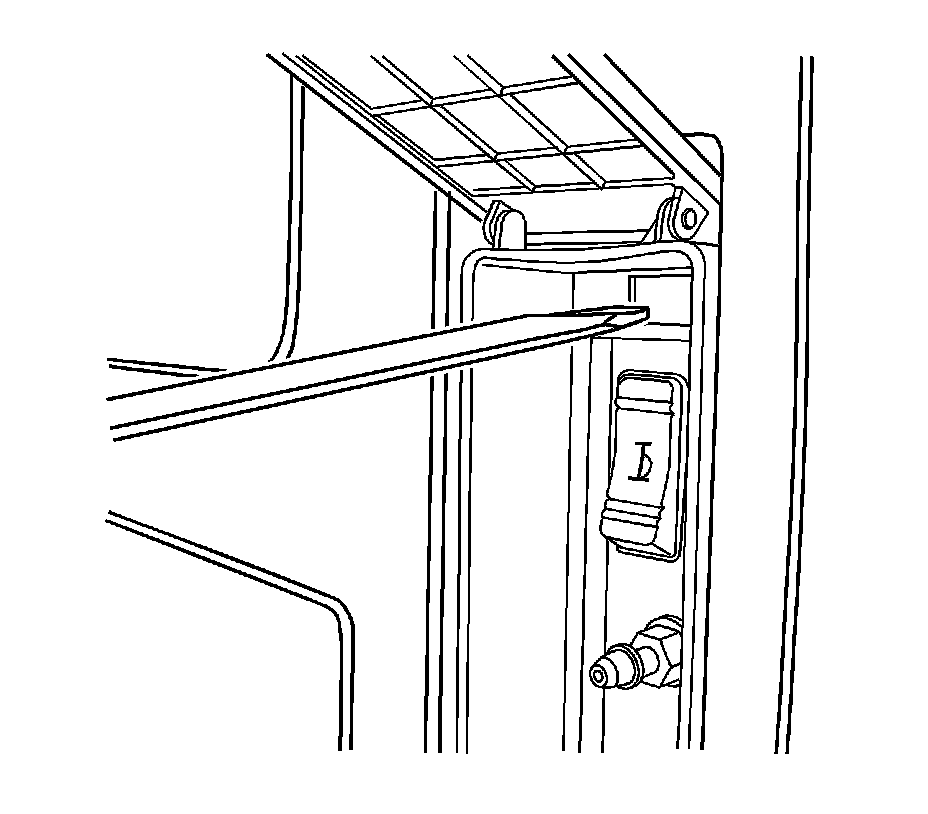

3. Using a flat-bladed tool, disengage the bezel from the rear trim panel.

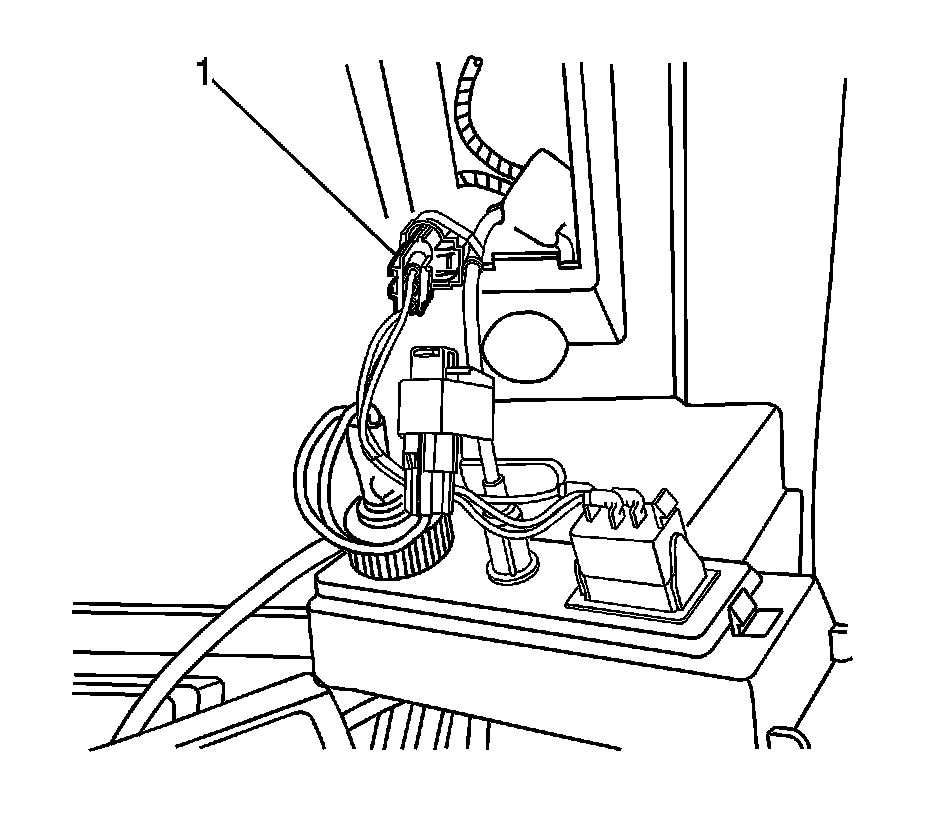

4. Disconnect the air inflator switch electrical connector (1).




5. Remove the air inflator switch from the bezel.

Installation Procedure




1. Install the air inflator switch to the bezel.
2. Connect the air inflator switch electrical connector (1).
3. Snap the bezel into the rear trim panel.
4. Close the inflator switch door.
5. Close the rear liftgate
