Suspension Mode Switch: Locations

Air Suspension Component Views

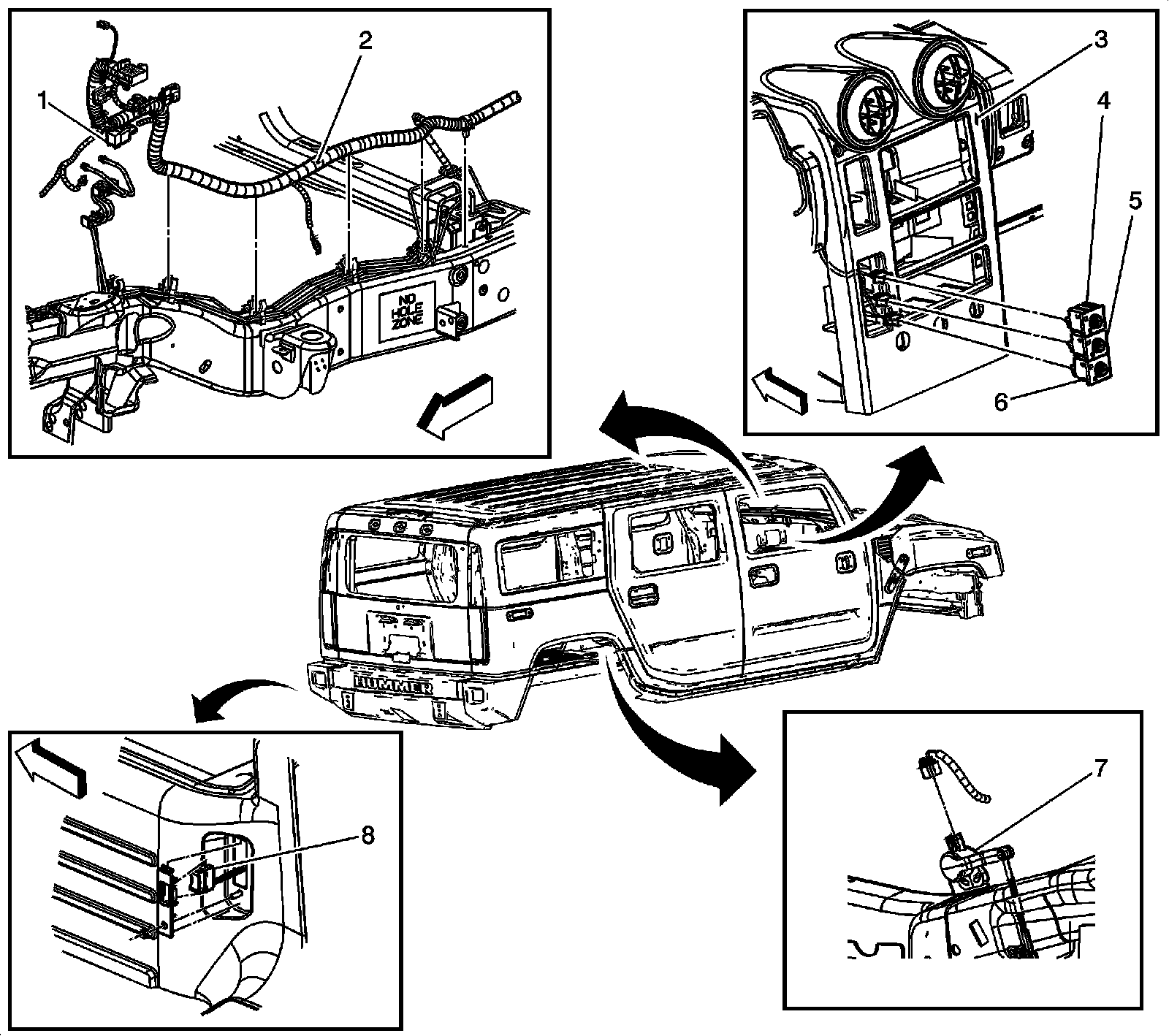

Chassis and Body Mounted Components:

1 - Electronically Controlled Air Suspension Relay
2 - Chassis Harness
3 - I/P Compartment
4 - Traction Control Switch
5 - Tow/Haul Switch
6 - Ride Height Switch
7 - Air Suspension Sensor - LR
8 - Air Suspension Inflator Switch

Right Rear Corner of Cargo Bed (SUT):

1 - Air Inflator Switch (ZM6)
2 - Auxiliary Power Outlet - Cargo (SUT)
