Suspension Control Pressure Sensor/Switch: Locations

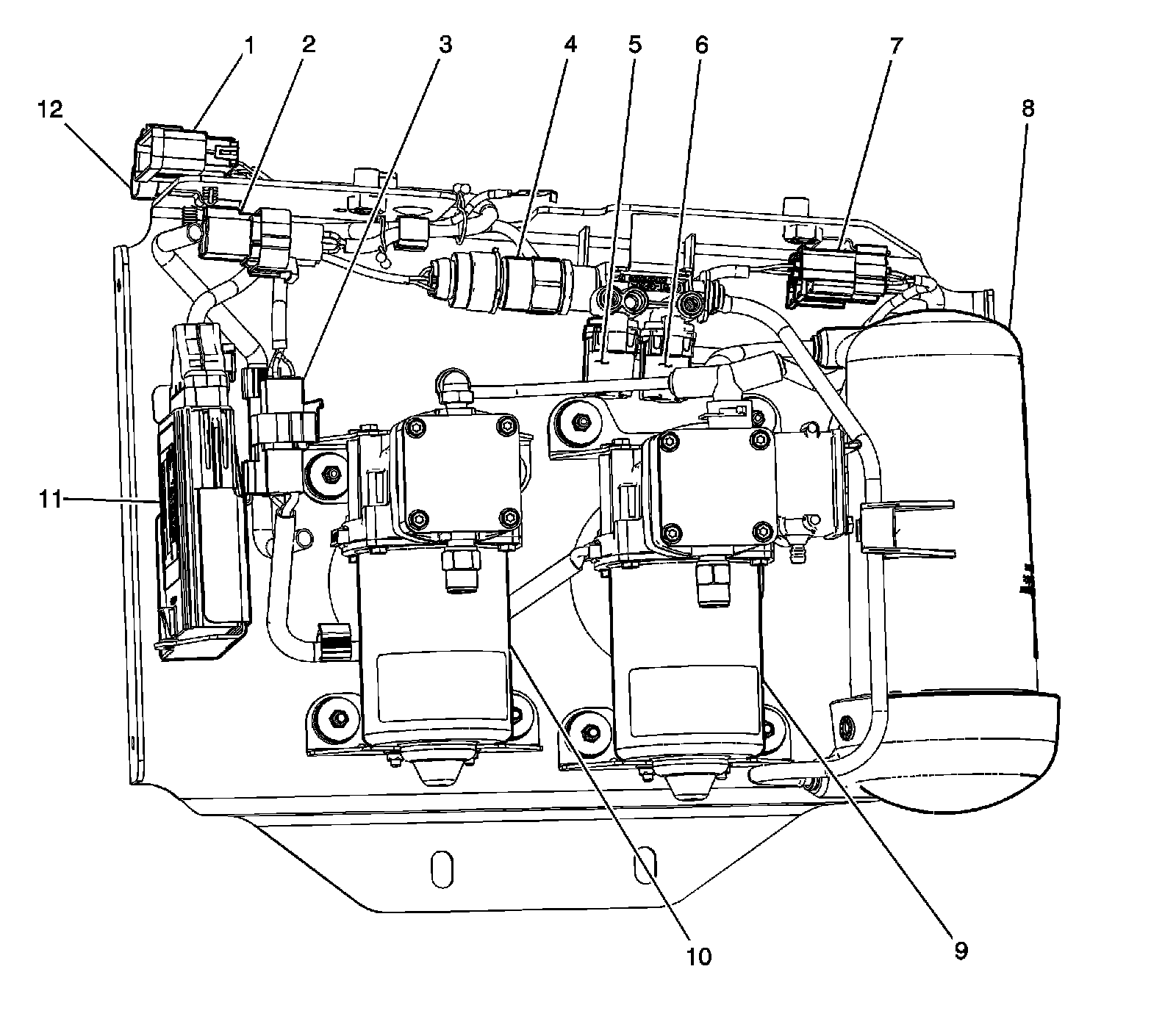

Air Suspension Component Views

Rear Underbody:

1 - C451
2 - Air Suspension Compressor 1 Connector
3 - Air Suspension Compressor 2 Connector
4 - Air Suspension Pressure Sensor
5 - Air Suspension Inlet Valve-LR
6 - Air Suspension Inlet Valve-RR
7 - Air Suspension Exhaust Valve Connector
8 - Air Suspension Air Dryer
9 - Air Suspension Compressor 1
10 - Air Suspension Compressor 2
11 - Air Suspension Module
12 - C450
