Horn Switch: Service and Repair

Horn Switch Replacement

Removal Procedure






Caution: Refer to Servicing the SIR System Caution.

1. Disable the SIR system. Refer to SIR Disabling and Enabling.
2. Remove the inflatable restraint steering wheel module.

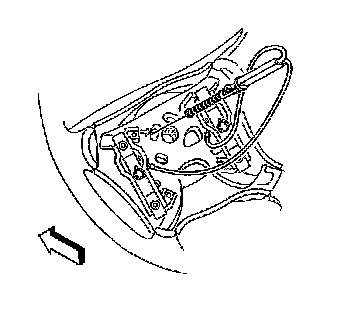

3. Remove the horn plunger from the steering column by pressing inward to the stop and rotating horn plunger 90 degrees.




4. Disconnect the horn contact plate (2) captured screws (1, 4) from the steering wheel (3).
5. Remove the horn switch (2) from the steering wheel (3).

Installation Procedure




1. Install the horn switch (2) to the steering wheel (3).

Notice: Refer to Fastener Notice.

2. Connect the horn contact plate (2) captured screws (1, 4) to the steering wheel (3).

Tighten the screws to 5.5 N.m (50 lb in).




3. Install the horn plunger to the steering column.
4. Install the inflatable restraint steering wheel module.
5. Enable the SIR system. Refer to SIR Disabling and Enabling.
