Fog/Driving Lamp Switch: Service and Repair

Off Road Lamp Switch Replacement

Removal Procedure

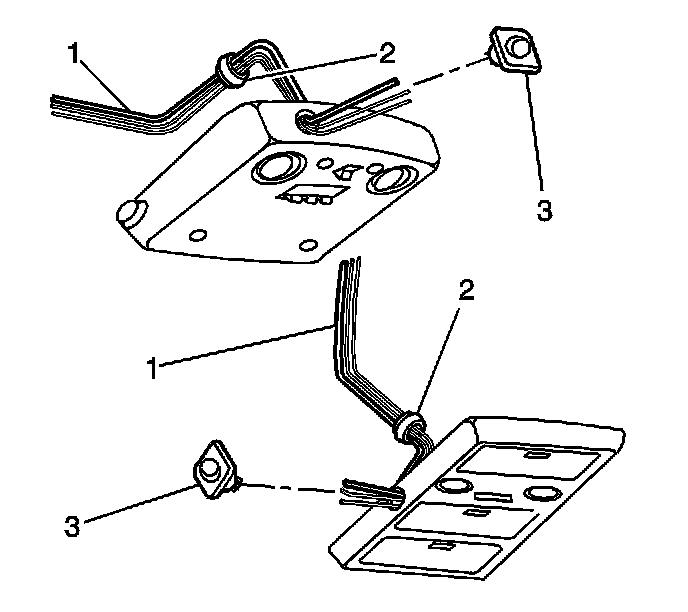

1. Remove the overhead console.
2. Note the color and position of the wires (1) on the switch terminals.
3. Disconnect the wires (1) from the switch.
4. Remove the nuts (2) retaining the switch (3) to the overhead console.
5. Remove the switch (3) from the overhead console.

Installation Procedure




1. Position the switch (3) into the opening in the overhead console.
2. Install the nut (2) onto the switch (3).
3. Tighten the nut (2) until fully seated not stripped.
4. Connect the wires (1) to the terminals on the switch (3) as noted in the removal procedure.
5. Install the overhead console.
