Ambient Light Sensor: Service and Repair

Ambient Light Sensor Replacement

Removal Procedure

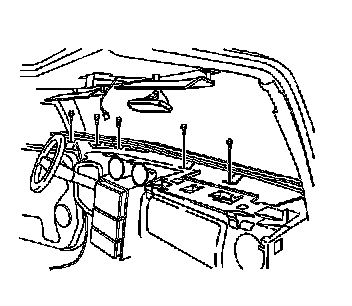

1. Remove the instrument panel top cover.

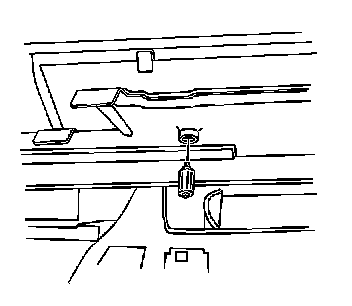

2. Disconnect the electrical connector to the ambient light sensor on the underside of the I/P upper trim panel.




3. Turn the ambient light sensor 1/4 turn and remove it from the I/P top cover.

Installation Procedure

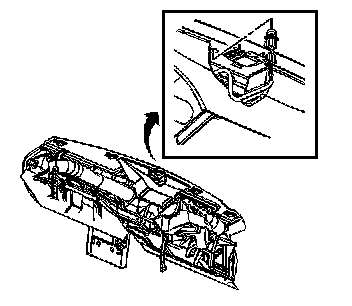

1. Install the ambient light sensor to the underside of the I/P top cover, turning it 1/4 turn to secure it in place.




2. Connect the electrical connector to the ambient light sensor on the underside of the I/P top trim panel.




3. Install the I/P panel top cover to the I/P.
