Outside Temperature Display Sensor: Service and Repair

Ambient Air Temperature Sensor Replacement

Removal Procedure

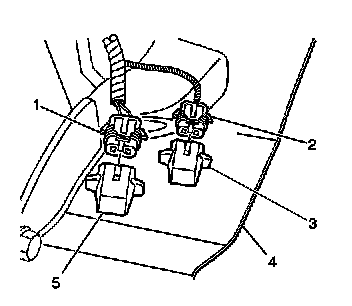

1. Disconnect the electrical connector (1) from the ambient air temperature sensor (5).
2. Remove the ambient air temperature sensor (5) from the vehicle (4).

Installation Procedure




1. Install the ambient air temperature sensor (5) to the vehicle (4).
2. Connect the electrical connector (1) to the ambient air temperature sensor (5).
