Air Temperature Sensor Replacement - Upper Right Side

Air Temperature Sensor Replacement - Upper Right Side

Removal Procedure

1. Open the I/P compartment door.
2. Lower the I/P compartment door.

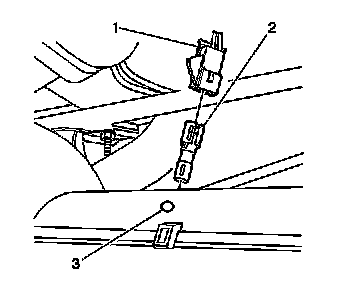

3. Disconnect the electrical connector (1) from the upper right air temperature sensor (2).
4. Remove the upper right air temperature sensor (1) from the air distributor duct (3).

Installation Procedure




1. Install the upper right air temperature sensor (1) to the air distributor duct (3).
2. Connect the electrical connector (1) to the upper right air temperature sensor (2).
3. Close the I/P compartment door.
