Discharge Air Temperature Sensor / Switch: Diagrams

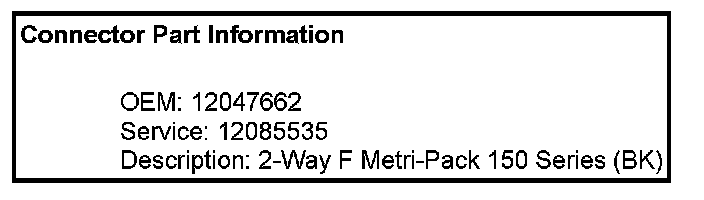

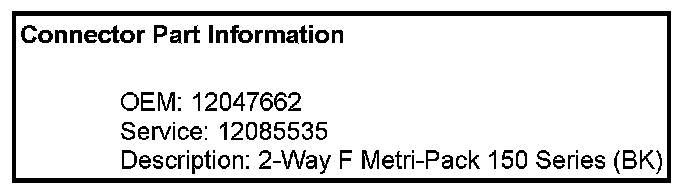

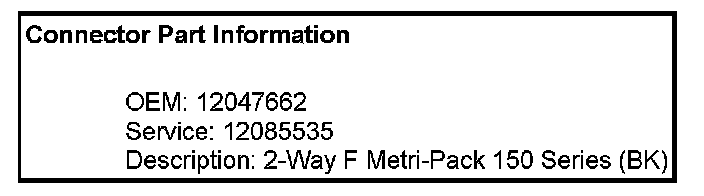

HVAC Connector End Views

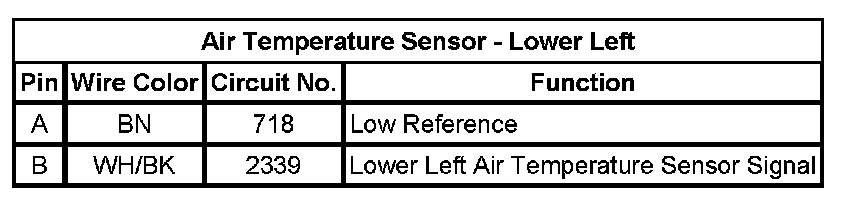

Air Temperature Sensor - Lower Left














Air Temperature Sensor - Lower Right

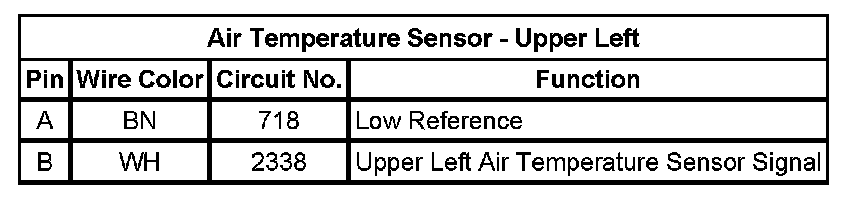

Air Temperature Sensor - Upper Left

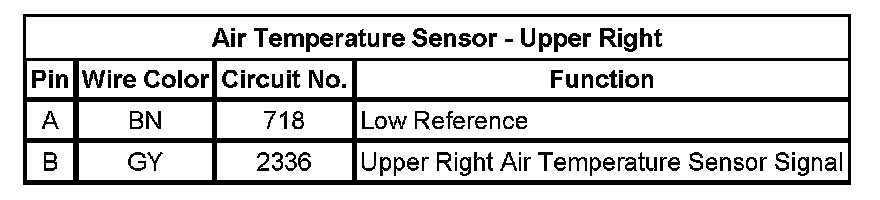

Air Temperature Sensor - Upper Right
