Cabin Temperature Sensor / Switch: Diagrams

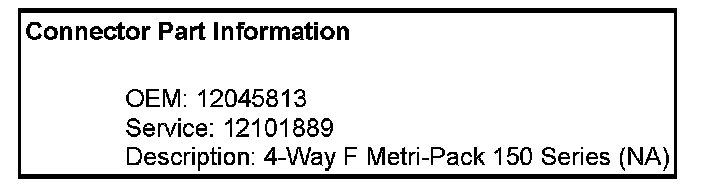

HVAC Connector End Views

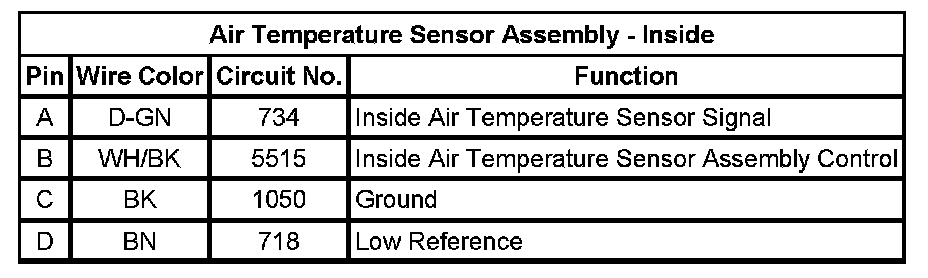

Air Temperature Sensor Assembly - Inside
