Sunroof / Moonroof Switch: Service and Repair

Sunroof Switch Replacement

Removal Procedure

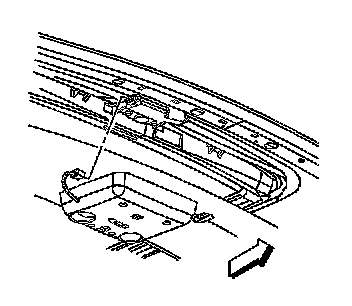

1. Remove the screws from the overhead console.
2. Pull the console forward to disengage the mounting tabs.
3. Disconnect the electrical connector from the sunroof switch.
4. Depress the retaining clips to disengage the sunroof switch from the overhead console.
5. Remove the sunroof switch from the vehicle.

Installation Procedure




1. Install the sunroof switch to the vehicle.
2. Install the sunroof switch through the retaining clips to secure into place.
3. Connect the electrical connector to the sunroof switch.
4. Engage the mounting tabs and push the overhead console rearward.

Notice: Refer to Fastener Notice.

5. Install the screws to the overhead console.

Tighten the screws to 3 N.m (26 lb in).
