Seat Temperature Switch: Locations

Heated/Cooled Seat Component Views

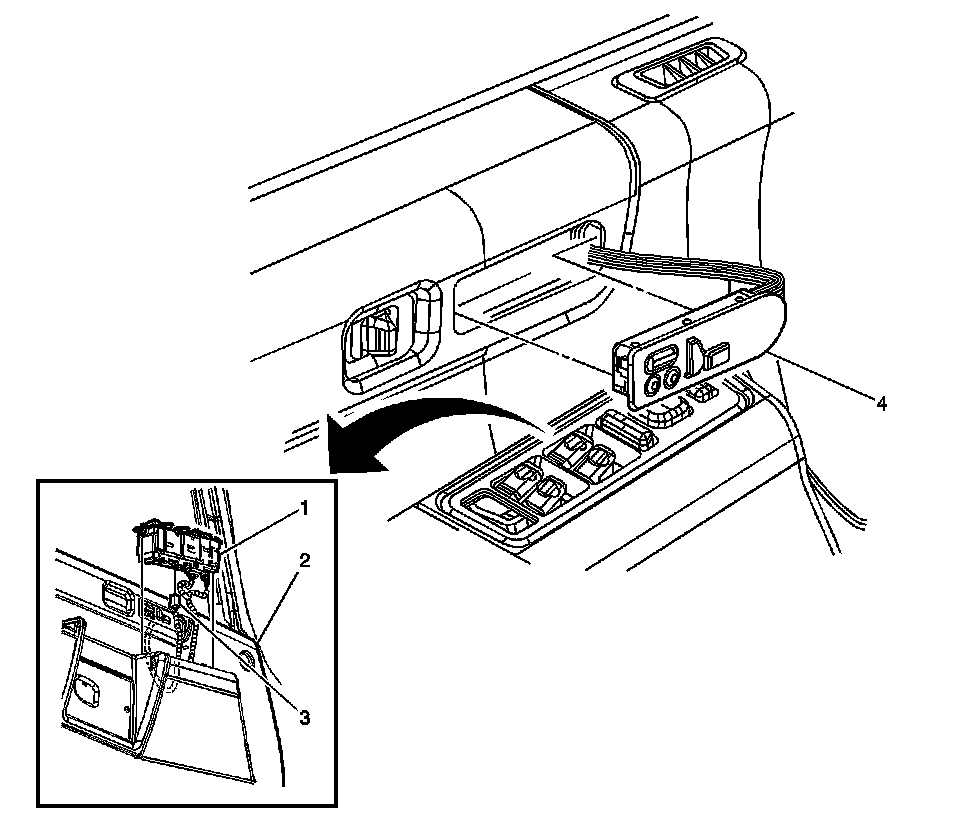

Memory/Heated Seat Switch-Driver (w/KA7)




1 - Driver Door Module (DDM)
2 - Driver Inner Door Panel
3 - DDM-C5 (Green)
4 - Memory/Heated Seat Switch-Driver(w/KA7)

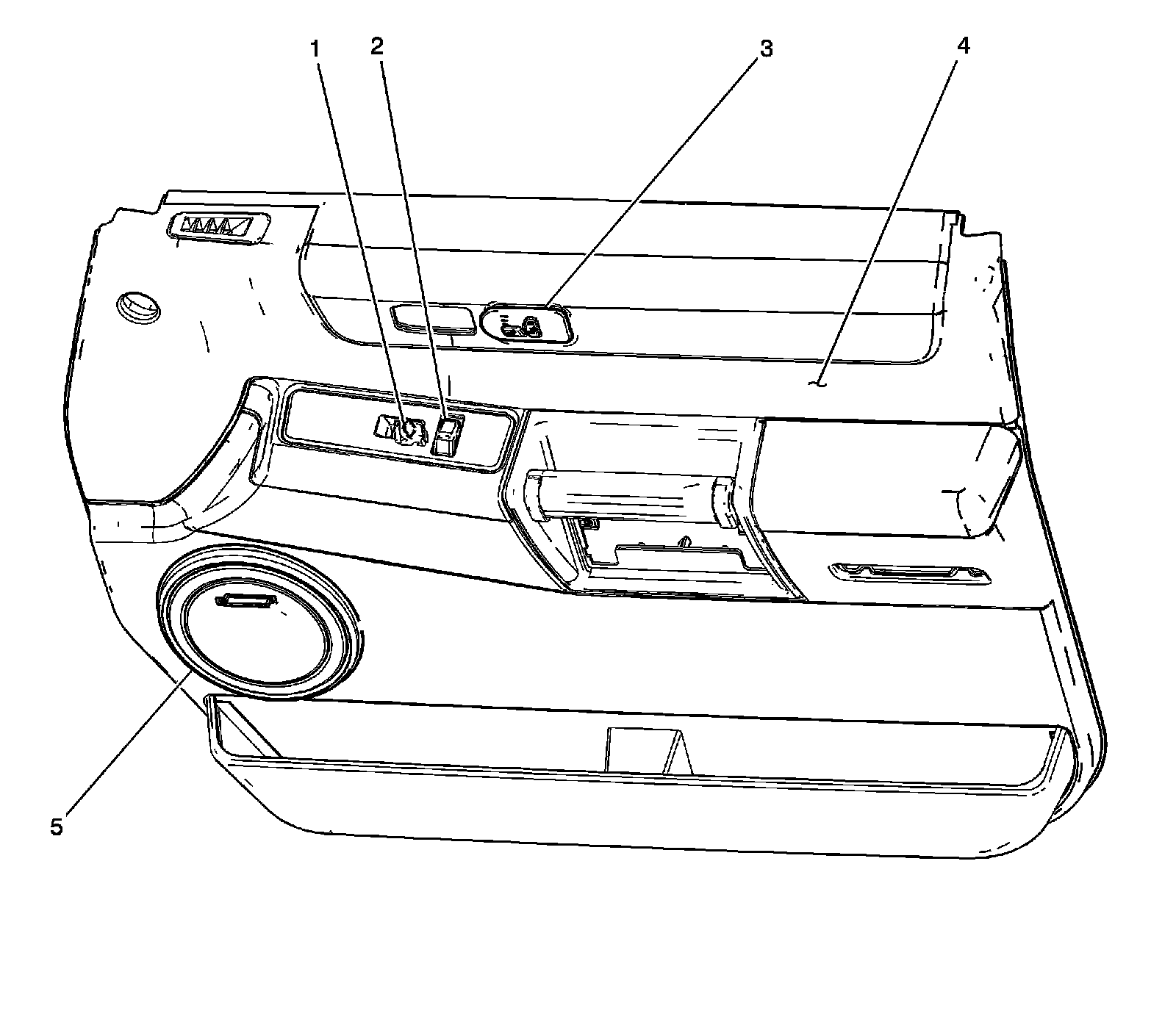

Heated Seat Switch-Passenger (w/KA7)




1 - Window Switch - Passenger
2 - Door Lock Switch - Passenger
3 - Heated Seat Switch - Passenger
4 - Passenger Door
5 - Speaker - RF Door

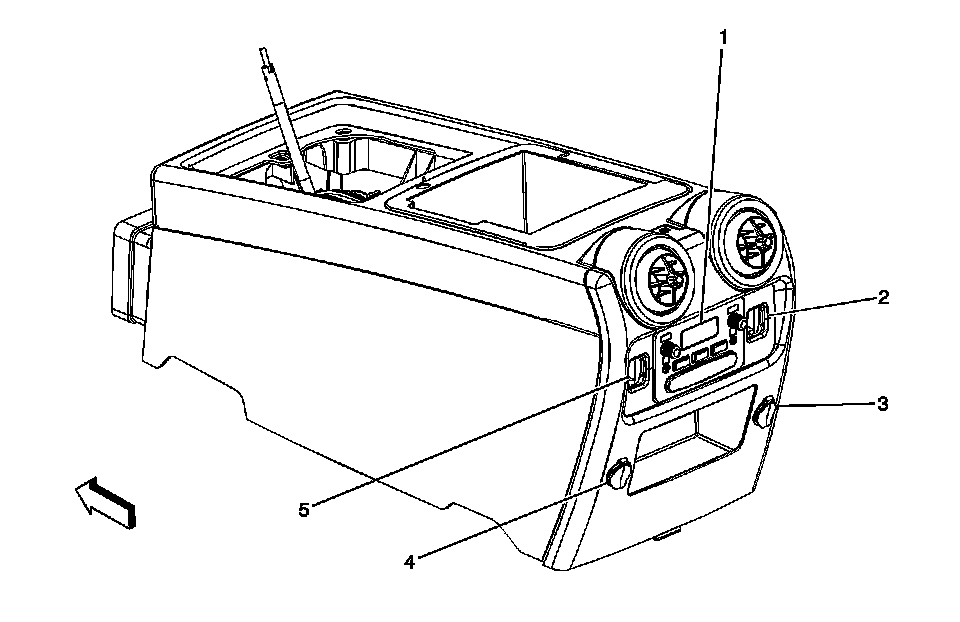

Heated Seat Switch-LR/RR (w/KA7)




1 - RSA Controller
2 - Heated Seat Switch-RR (w/KA7)
3 - Accessory Power Outlet-RR
4 - Accessory Power Outlet-LR
5 - Heated Seat Switch-LR (w/KA7)
